  • Reinforced intermediate section Zinc + White Paint 3m turret series 450 Televes

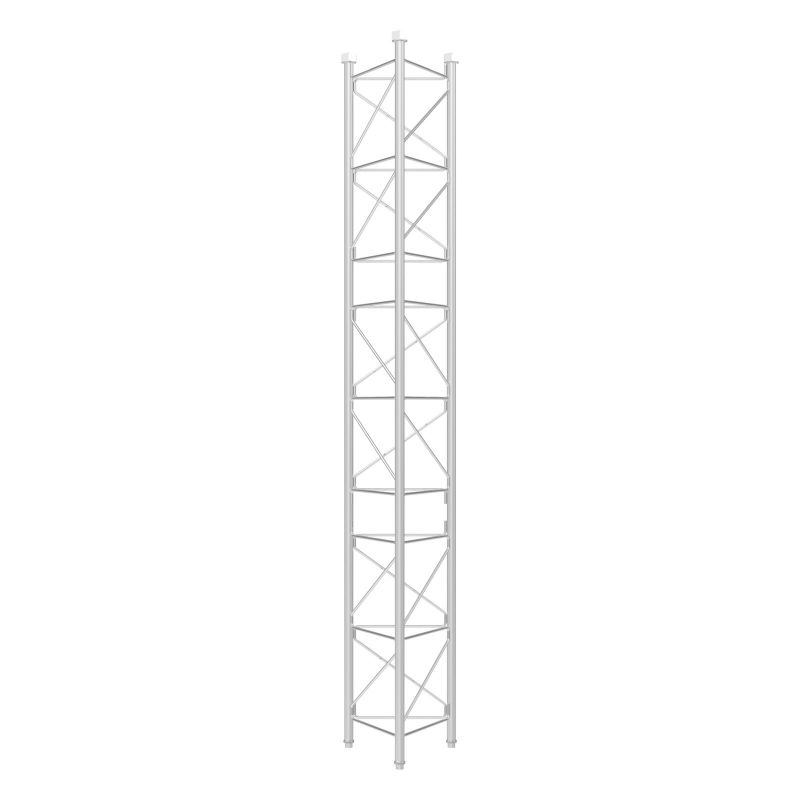

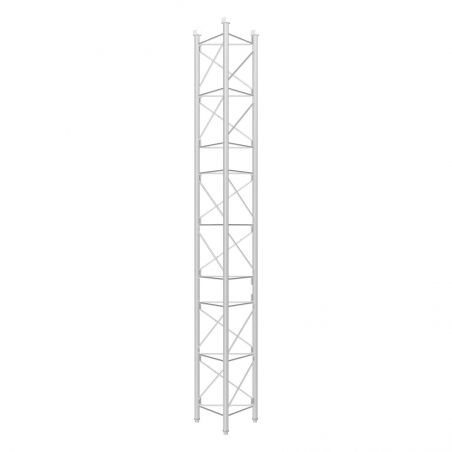

Reinforced intermediate section Zinc + White Paint 3m turret series 450 Televes

3m reinforced middle section for the erection of a 450 series tower. Reinforced sections provide higher robustness, since the tubes have higher diameter and thickness; ideal for complex scenarios. Televes 313201

€942.93
Tax included
Reference televes-313201
Brand Televes
Quantity
Available in 24/48h

Free shipping

Reinforced intermediate section Zinc + White Paint 3m turret series 450 Televes

€942.93

This product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here

3m reinforced middle section for the erection of a 450 series tower.
Reinforced sections provide higher robustness, since the tubes have higher diameter and thickness; ideal for complex scenarios.

Highlights

  • Anchoring system with union nuts
  • Fully automated soldering
  • 450 tower maximum height: 90m (as per calculation conditions)

Features

  • Zinc coating + colour paint: oven-lacquering with polyester electrostatic powder

Specifications

Reference 313201
Description Intermediate section reinforced pylon MR450. white color
Fabrication (1) Steel ST 37-2 Ø 40 ext. x 3 mm thick.
Re min. 235 N / mm2 - Rn min. 360/510 N / mm2
(2) Steel S 275 JR Ø 12 mm
Re min. 275 N / mm2 - Rn min. 410/560 N / mm2
Finish Printed + baking lacquered with powder Electrostatic polyester 60-80 μm (White RAL 9002)
Weight 40.8 Kg
Surface facing the wind 0.517 m2 x 1.2 coef. = 0.621 m2
