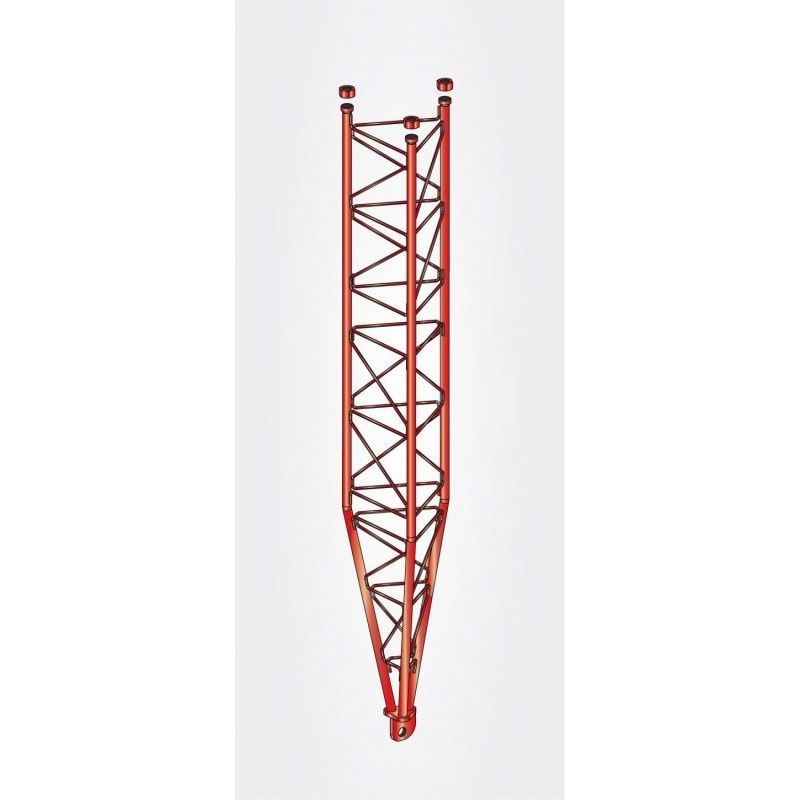

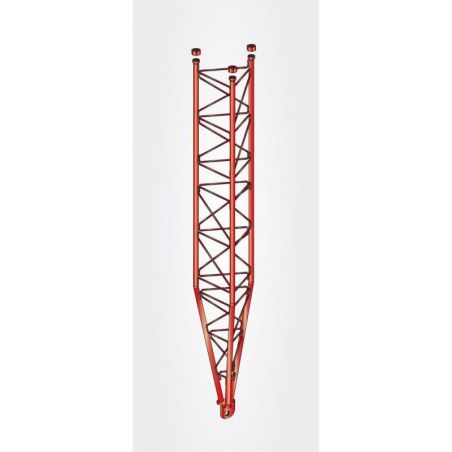

Bottom section tilting Zinc + Painting Red 3m turret series 550 Televes
3m lower section pivoting for the erection of a 550-series tower. The section is painted red (RAL 3020). Guy wires are required for pivoting sections. Televes 313901
€1,750.10
Tax included
Reference
televes-313901
Brand
Televes
Bottom section tilting Zinc + Painting Red 3m turret series 550 Televes
€1,750.10
This product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here
3m lower section pivoting for the erection of a 550-series tower. The section is painted red (RAL 3020). Guy wires are required for pivoting sections.
Highlights
- Anchoring system with union nuts
- 550 tower maximum height: 140m (as per calculation conditions)
Features
- Zinc coating + Red colour paint: oven-lacquering with polyester electrostatic powder
Specifications
| Reference | 313901 |
| Description | Pylon of lower section 550. Red color |
| Manufacturing | (1) Steel ST 37-2 Ø 60 ext. x 4 mm thick. Re min. 235 N / mm2 - Rn min. 360/510 N / mm2 (2) Steel S 275 JR Ø 14mm Re min. 275 N / mm2 - Rn min. 410/560 N / mm2 |
| Finish |
Printed + baking lacquered with electrostatic powder Polyester 60-80 μm (Red RAL 3020) |
| Weight | 97 Kg |
| Surface facing the wind | 0.704 m2 x 1.2 coef. = 0.845 m2 |
