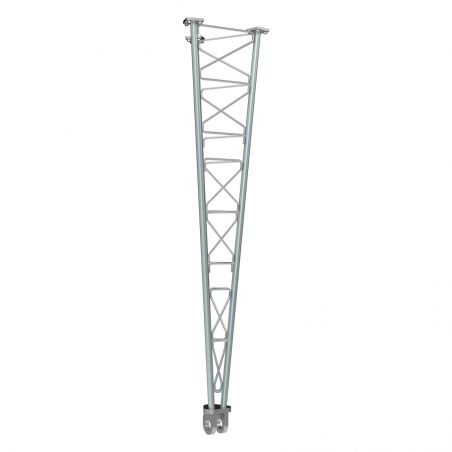

Bottom section tilting G.C + Painting Red 3m turret series 550 XL Televes

3m lower section pivoting for the erection of a 550 XL-series tower. The section is painted red (RAL 3020). Guy wires are required for pivoting sections. Televes 313911

€3,021.32
Tax included
Reference televes-313911
Brand Televes
Quantity
Available in 24/48h

Free shipping
Bottom section tilting G.C + Painting Red 3m turret series 550 XL Televes

Bottom section tilting G.C + Painting Red 3m turret series 550 XL Televes

€3,021.32

This product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here

3m lower section pivoting for the erection of a 550 XL-series tower.
The section is painted red (RAL 3020).
Guy wires are required for pivoting sections.

Highlights

  • Anchoring system based on plates and union nuts
  • Outstanding stiffness and mechanical strength
  • Solid tube, no internal corrosion
  • Maximum height of the 550 XL tower: 200m (as per calculation conditions)

Features

  • The hot-dip galvanizing surface treatment provides enhanced durability in adverse corrosion conditions
  • Colour paint, oven-lacquering with polyester electrostatic powder

Specifications

Reference 313911
Description Bottom section
Color Red (RAL 3020)
Material pipes Steel S235 Ø 48 mm esp.
Re min. 215 N / mm2
Rm min. 360/510 N / mm2
Reinforcement material Steel S235 Ø 16 mm
Re min. 235 N / mm2
Rm min. 360/510 N / mm2
Material anchoring Steel S235, sheet 20 mm esp.
Re min. 225 N / mm2
Rm min. 360/510 N / mm2
Finish Hot Galvanized + Baked with 60-80 μm Polyester Electrostatic Powder
Surface facing the wind 0.58 m2 x 1.2 coef. = 0.7 m2
