Intermediate stretch Zinc + Painting White 3m turret serie 550 Televes
3m middle Section for the erection of a 550 series tower. White color. Televes 314001
€1,351.45
Tax included
Reference
televes-314001
Brand
Televes
Intermediate stretch Zinc + Painting White 3m turret serie 550 Televes
€1,351.45
This product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here

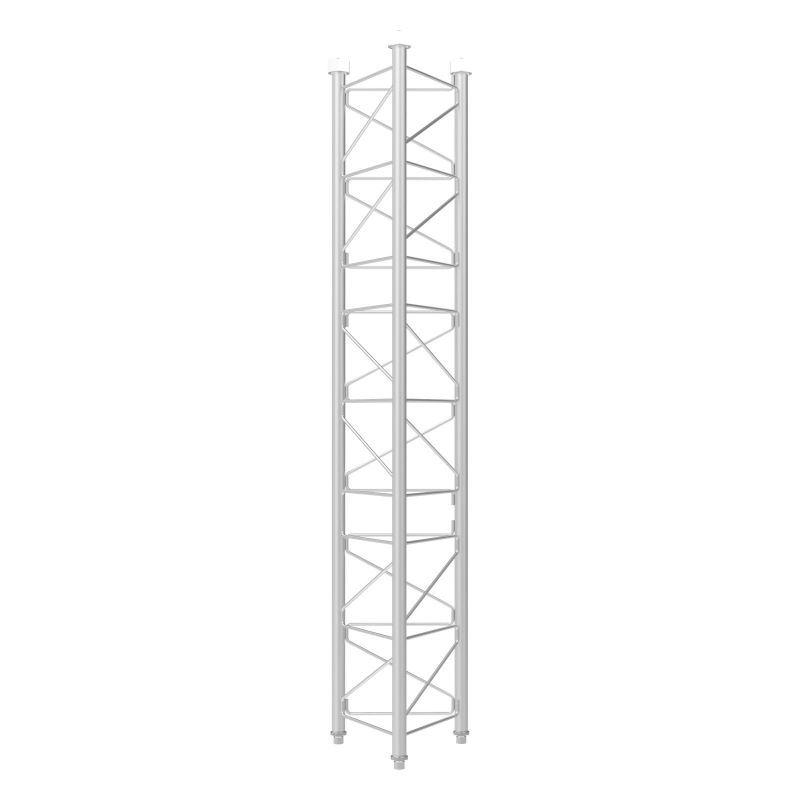

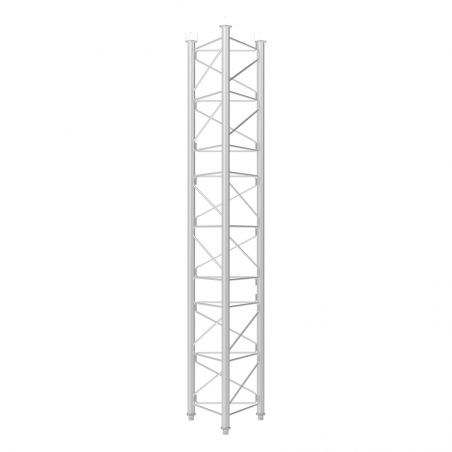

3m middle Section for the erection of a 550 series tower.
Highlights
- Anchoring system with union nuts
- 550 tower maximum height: 140m (as per calculation conditions)
Features
- Zinc coating + White colour paint: oven-lacquering with polyester electrostatic powder
Specifications
| Reference | 314001 |
| Description | Pylon 550 intermediate section. White color |
| Manufacturing | (1) Steel ST 37-2 Ø 60 ext. x 4 mm thick. Re min. 235 N / mm2 - Rn min. 360/510 N / mm2 (2) Steel S 275 JR Ø 14 mm Re min. 275 N / mm2 - Rn min. 410/560 N / mm2 |
| Finish | Printed + baking lacquered with electrostatic powder Polyester 60-80 μm (White RAL 9002) |
| Weight | 85 Kg |
| Surface facing the wind | 0.718 m2 x 1.2 coef. = 0.862 m2 |
