Intermediate section G.C + Painting Red turret series 550 XL 3m Televes

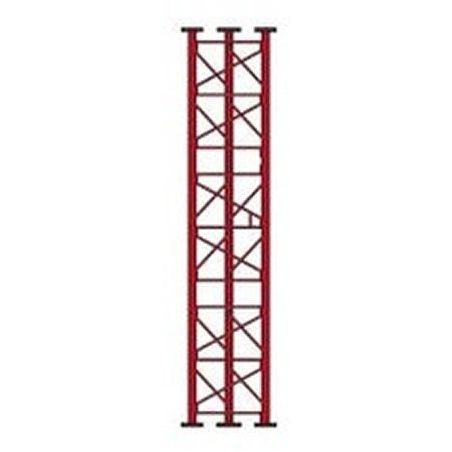

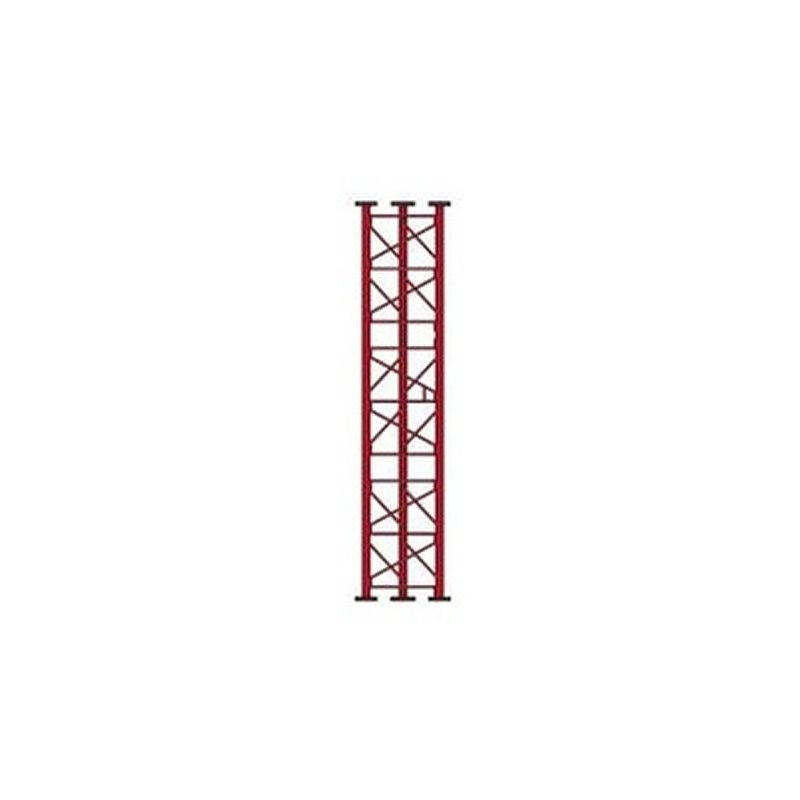

3m middle section for the erection of a 550 XL series tower. Color Red (RAL 3020). Televes 314010

€3,021.32
Tax included
Reference televes-314010
Brand Televes
Quantity
Available in 24/48h

Free shipping
Intermediate section G.C + Painting Red turret series 550 XL Televes

Intermediate section G.C + Painting Red turret series 550 XL 3m Televes

€3,021.32

This product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here

3m middle section for the erection of a 550 XL series tower.

Highlights

  • Anchoring system based on plates and union nuts
  • Outstanding stiffness and mechanical strength
  • Solid tube, no internal corrosion
  • Maximum height of the 550 XL tower: 200m (as per calculation conditions)

Features

  • The hot-dip galvanizing surface treatment provides enhanced durability in adverse corrosion conditions
  • Colour paint, oven-lacquering with polyester electrostatic powder

Specifications

Reference 314010
Description Intermediate section
 Color Red  (RAL 3020)
Material pipes Steel S235 Ø 48 mm esp.
Re min. 215 N / mm2
Rm min. 360/510 N / mm2
Reinforcement material Reinforcement material
Steel S235 Ø 16 mm
Re min. 235 N / mm2
Rm min. 360/510 N / mm2
Material anchoring Steel S235, sheet 20 mm esp.
Re min. 225 N / mm2
Rm min. 360/510 N / mm2
Finish Hot Galvanized + Baked with 60-80 μm Polyester Electrostatic Powder
Surface facing the wind 0.6 m2 x 1.2 coef. = 0.72 m2
