Extension coaxiale avec connecteurs IEC mâle - femelle Blanc 5m Televes

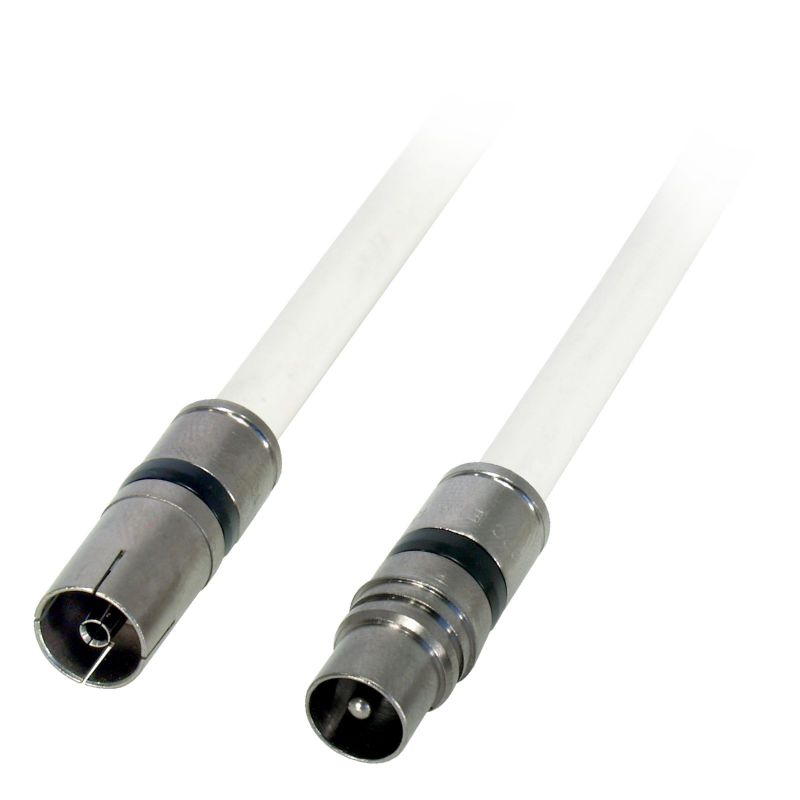

Pre-terminated extension with IEC/CEI male connectors on one end and IEC/CEI female on the other, manufactured with 5m coaxial cable. Color White. Suitable for professional use, besides the regular use in the connection between socket and TV devices. Supplied in an individual bag with hanger. Televes 385202

€20.95
Tax included
Reference televes-385202
Brand Televes
Quantity
Available in 24/48h

Free shipping
Extension coaxiale avec connecteurs IEC mâle - femelle Blanc 5m Televes

Extension coaxiale avec connecteurs IEC mâle - femelle Blanc 5m Televes

€20.95
coaxial cable lead pre-connected with IEC compression connectors, male connector on one end (ref. 3818) and female connector on the other (ref. 3819). Made of SK2000plus cable (ref. 4138xx), a Class A++-coaxial cable with triple shielded.
Suitable for professional use, besides the regular use in the connection between socket and TV devices.
Supplied in an individual bag with hanger.

Features

  • Length 5m
  • Connectors IEC/CEI male - IEC/CEI female
  • Copper coaxial cable conductors
  • Triple shielded, class A++. Eca Euroclass
  • White-colour external PVC sheath

Class A++ Trishield (TSH) coaxial cable

With three shielding layers (Trishield), this cables provide the highest immunity to interference thanks to its very high shielding. Recommended in cases of high electromagnetic noise levels.

They belong in EN 50117 standard Class A++, according to their structural properties:

  • For 5 MHz - 30 MHz => TI < 0.9 mΩ/m
  • For 5 MHz - 1000 MHz => SA > 105 dB
  • For 1000 MHz - 2000 MHz => SA > 95 dB
  • For 2000 MHz - 3000 MHz => SA > 85 dB

Where the transfer impedance (TI) defines how effective the shielding is at low frequencies, while the shielding attenuation (SA) defines it in the 30 MHz-to-3000 MHz range.

Specifications

References / Art. Nr. 3852xx / TAK20xx
 Cable type Class A+
 Inner conductor  Ø mm 1.02
 Material  Cu (copper)
 Resistance ohm/Km 22
 Dielectric  Ø mm 4.6
 Material  PEE (foam polyethylene)
 Over lapped foil  Material Aluminium + Polyester
 Braid  Material  CuSn (tinned copper)
 Resistance ohm/Km 10.5
 Coverage % 82
 2nd shielding film Yes
 Outer sheath  Ø mm 6.7
 Material  PVC (polyvinyle clorhidre)
 Minimum bending radius mm 33.5
 Shielding at 1GHz dB >95 (typ. 125)
 Capacitance pF/m 54
 Impedance 75
 Velocity ratio % 84
 Attenuations dB/m
 Frequency  200 MHz 0.09
 500 0.14
 800 0.18
 1000 0.21
 1350 0.25
 1750 0.28
 2050 0.31
 2300 0.32
