Coaxial extension with F male connectors White 3m Televes
search
  • Coaxial extension with F male connectors White 3m Televes

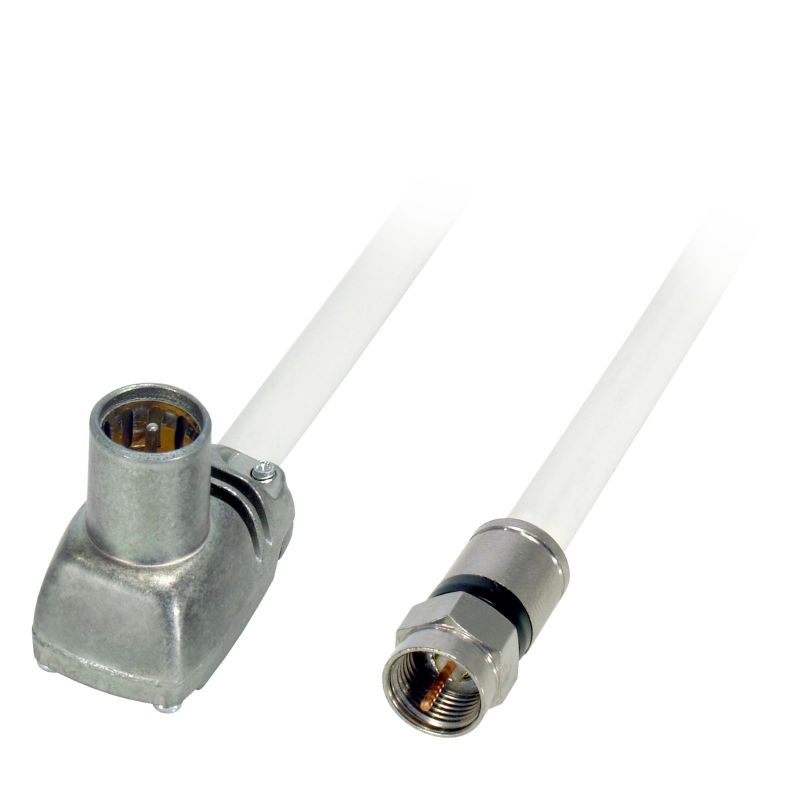

Coaxial extension with F male connectors White 3m Televes

3m preconnected coaxial extension with one compression F connector on one end and one PROEasyF "F fast" on the other. Made with the quality cable SK2000plus, a coaxial cable of triple shielding and class A ++.
In addition to being used for the connection between the socket and TV devices, it can also be used in professional applications. Televes 385301

€14.40
Tax included
Reference televes-385301
Brand Televes
Quantity
Last items in stock

Free shipping
Coaxial extension with F male connectors White 3m Televes

Coaxial extension with F male connectors White 3m Televes

€14.40
Coaxial cable lead pre-connected with an F compression connector on one end (ref. 3802) and a PROEasyF Quick F (ref. 413410) connector on the other. Made of SK2000plus cable (ref. 4138xx), a Class A++-coaxial cable with triple shielded.
Suitable for professional use, besides the regular use in the connection between socket and TV devices.

Highlights

  • Copper coaxial cable conductors
  • Triple shielded, class A++. Eca Euroclass
  • PROEasyF elbowed connector with class A++ shielded

Features

  • Length 3m
  • White-colour external PVC sheath
  • Male F compression connectors and male PROEasyF F fast

Class A++ Trishield (TSH) coaxial cable

With three shielding layers (Trishield), this cables provide the highest immunity to interference thanks to its very high shielding. Recommended in cases of high electromagnetic noise levels.

They belong in EN 50117 standard Class A++, according to their structural properties:

  • For 5 MHz - 30 MHz => TI < 0.9 mΩ/m
  • For 5 MHz - 1000 MHz => SA > 105 dB
  • For 1000 MHz - 2000 MHz => SA > 95 dB
  • For 2000 MHz - 3000 MHz => SA > 85 dB

Where the transfer impedance (TI) defines how effective the shielding is at low frequencies, while the shielding attenuation (SA) defines it in the 30 MHz-to-3000 MHz range.

Specifications

References / Art. Nr. 3853xx / FS-FSW20xx
 Cable type Class A++
 Inner conductor  Ø mm 1.02
 Material  Cu (copper)
 Resistance ohm/Km 22
 Dielectric  Ø mm 4.6
 Material  PEE (foam polyethylene)
 Over lapped foil  Material Aluminium + Polyester
 Braid  Material  CuSn (tinned copper)
 Resistance ohm/Km 10.5
 Coverage % 82
 2nd shielding film Yes
 Outer sheath  Ø mm 6.7
 Material  PVC (polyvinyle clorhidre)
 Minimum bending radius mm 33.5
 Shielding at 1GHz dB >105 (typ. 130)
 Capacitance pF/m 54
 Impedance 75
 Velocity ratio % 84
 Attenuations dB/m
 Frequency  200 MHz 0.09
 500 0.14
 800 0.18
 1000 0.21
 1350 0.25
 1750 0.28
 2050 0.31
 2300 0.32
