Coaxial extension F male - IEC female White 3m Televes
search
  • Coaxial extension F male - IEC female White 3m Televes
  • Coaxial extension F male - IEC female White 3m Televes

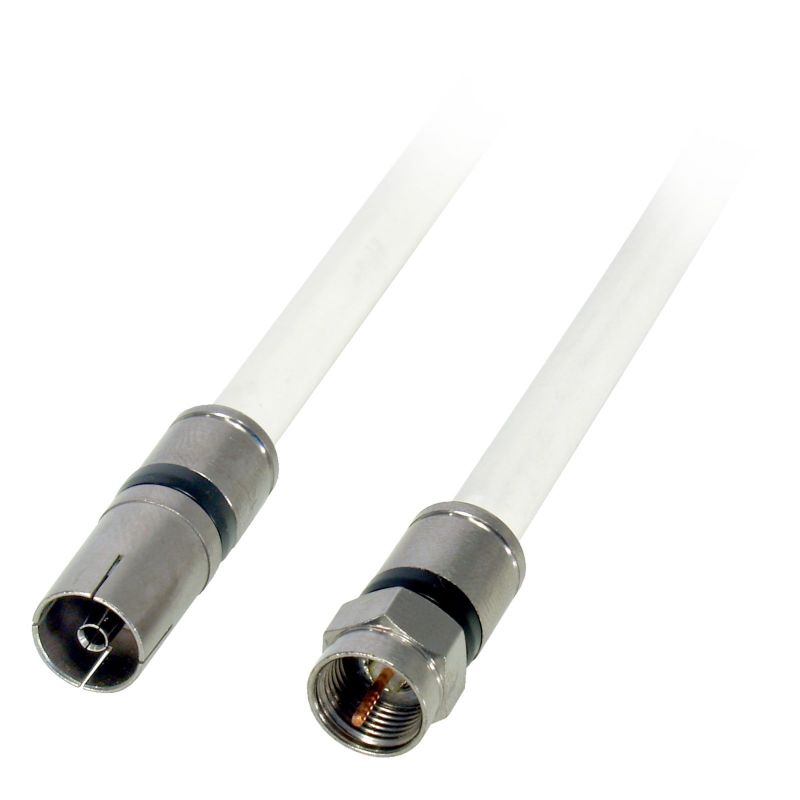

Coaxial extension F male - IEC female White 3m Televes

Pre-connectorized extension with a male F compression connector on one end and a female IEC/CEI on the other, manufactured with coaxial cable three shielded class A++ 3m. White color. Televes 385401

€16.99
Tax included
Reference televes-385401
Brand Televes
Quantity
Out-of-Stock

Free shipping

Coaxial cable lead pre-connected with compression connectors: F on one end (ref. 3802) and female IEC (ref. 3819) on the other. Made of SK2000plus cable (ref. 4138xx), a Class A++-coaxial cable with triple shielded.
Suitable for professional use, besides the regular use in the connection between socket and TV devices.

Highlights

  • Copper coaxial cable conductors
  • Triple shielded, class A++. Eca Euroclass

Features

  • Length 3m
  • White-colour external PVC sheath
  • Compression connector male F - IEC/CEI female

Class A++ Trishield (TSH) coaxial cable

With three shielding layers (Trishield), this cables provide the highest immunity to interference thanks to its very high shielding. Recommended in cases of high electromagnetic noise levels.

They belong in EN 50117 standard Class A++, according to their structural properties:

  • For 5 MHz - 30 MHz => TI < 0.9 mΩ/m
  • For 5 MHz - 1000 MHz => SA > 105 dB
  • For 1000 MHz - 2000 MHz => SA > 95 dB
  • For 2000 MHz - 3000 MHz => SA > 85 dB

Where the transfer impedance (TI) defines how effective the shielding is at low frequencies, while the shielding attenuation (SA) defines it in the 30 MHz-to-3000 MHz range.

Specifications

References / Art. Nr. 3854xx / FS-KK20xx
 Cable type Class A++
 Inner conductor  Ø mm 1.02
 Material  Cu (copper)
 Resistance ohm/Km 22
 Dielectric  Ø mm 4.6
 Material  PEE (foam polyethylene)
 Over lapped foil  Material Aluminium + Polyester
 Braid  Material  CuSn (tinned copper)
 Resistance ohm/Km 10.5
 Coverage % 82
 2nd shielding film Yes
 Outer sheath  Ø mm 6.7
 Material  PVC (polyvinyle clorhidre)
 Minimum bending radius mm 33.5
 Shielding at 1GHz dB >105 (typ. 130)
 Capacitance pF/m 54
 Impedance 75
 Velocity ratio % 84
 Attenuations dB/m
 Frequency  200 MHz 0.09
 500 0.14
 800 0.18
 1000 0.21
 1350 0.25
 1750 0.28
 2050 0.31
 2300 0.32
