  • Ilsintech Swift Fiber Optic Fusion Splicer KF4

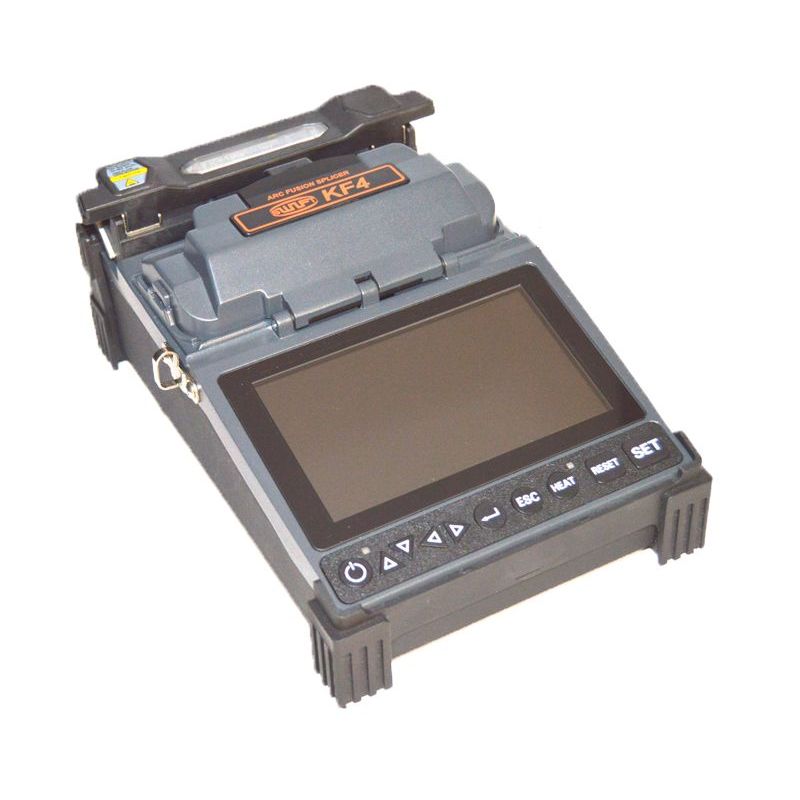

Ilsintech Swift Fiber Optic Fusion Splicer KF4

Fusing machine by active V-Groove coating with 4 motors and IPAAS system. You can do all kinds of splicing for FTTx. Compatible with SOC connectors (Connector Fusion). Swift KF4 guarantees its users a stable procedure and high performance. Includes harness bag for work at height.

€2,988.70 €3,146.00 Save 5%
Tax included
Reference ilsintech-kf4
Brand Ilsintech
Quantity
Available in 24/48h

Free shipping

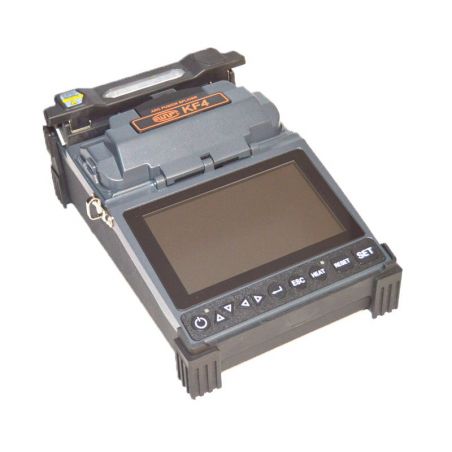

Ilsintech Swift Fiber Optic Fusion Splicer KF4

€2,988.70 €3,146.00 Save 5%
Fusing machine by active V-Groove coating with 4 motors and IPAAS system. You can do all kinds of splicing for FTTx. Compatible with SOC connectors (Connector Fusion). Swift KF4 guarantees its users a stable procedure and high performance.

Features

  • Fusionadora of alignment in the 3 axes.
  • 7s fusion time, 13s oven time (fast mode, Ilsintech sleeves)
  • High capacity lithium battery: up to 200 cycles duration
  • Low loss by splice
  • Equipment without mirrors
  • One-step cutter included: the fastest on the market
  • Typical loss less than 0.02dB
  • Duration of the electrodes: 21000 mergers, the largest on the market
  • Storage of fusion images
  • Fixed universal holdersGuarantee of 2 years of series, borrowed from Spain (battery and charger 6 months)

Specifications

Type of alignment On the 3 axes (IPAAS). Active coating
Supported fibers 0.25mm, 0.9mm, 2.0mm, 3.0mm, 4.0mm
Supported fiber dimensions Cladding diameter 125μm, cover dimension 250, 900μm
Recommended cut length 5mm -16mm
Operating programs Fusion programs: 300, oven programs: 100
Typical loss SM: 0.02dB, MM: 0.01dB, DS:0.04dB, NZDS: 0.04dB
Loss of return ˃ 60dB
Fusing time 7s single mode
Estimation of loss Yes
Oven time 13s (60mm Ilsintech protectors), other protectors consult
Storage of fusion results Internal memory for 5000 fusions with image support
Shooting test (tension test) 1.96N to 2.25N
Operating conditions Altitude: 0 - 5000m above sea level.
Temperature: -10ºC - + 50ºC
Humidity: 0 - 95% (without condensation)
Wind: 15 m / s
Dustproof: yes
Waterproof: yes
Shockproof: yes
Storage conditions Temperature: -40ºC - + 80ºC
Humidity: 0 - 95%
Dimensions width x length x height: 124 x 189 x 75 mm
Weight 1.1kg (with batteries)
Vision method 2 CMOS cameras
Display 4.3 "color LCD
Lens magnification X / Y: 130X max 260X
Battery Lithium battery 14.8V 3400 mAh
Charger 100 to 240V charger included
Typical battery life 200 complete cycles (fusion + oven)
Life of the electrodes 21000 mergers
Connectivity USB

Kit Contents

  • Fusionadora with universal fixed holders
  • One-step cutter with fiberglass mechanism and self-rotating disc
  • Lithium battery
  • AC battery charger
  • Nylon carry case "shoulder bag"
  • 3 holes fiber peeler
  • Cleaning elements
  • Manual

Optional gadgets

  • Holder sets of 0.250, 0.900, 2.0, 3.0 and 4.0mm
  • Fixation system for work at height
  • Rigid suitcase
  • Holders for making SOC connectors
