Highlights

• Copper coaxial cable conductors
• Triple shielded, class A++. Eca Euroclass

Features

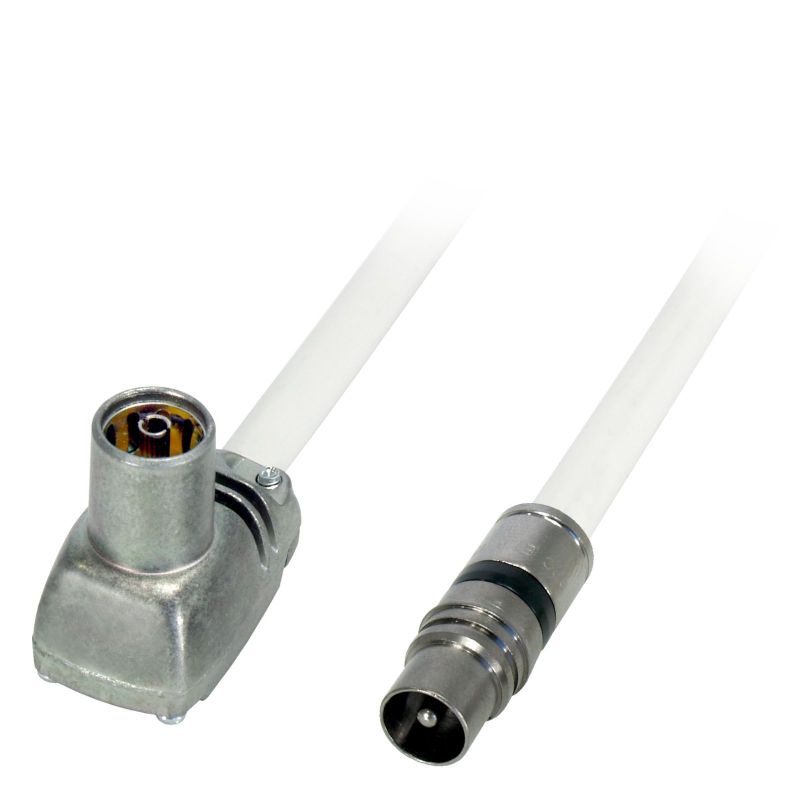

• Length 3m
• White-colour external PVC sheath
• Connectors male IEC/CEI - female PROEasyF IEC/CEI

Class A++ Trishield (TSH) coaxial cable

With three shielding layers (Trishield), this cables provide the highest immunity to interference thanks to its very high shielding. Recommended in cases of high electromagnetic noise levels.

They belong in EN 50117 standard Class A++, according to their structural properties:

• For 5 MHz - 30 MHz => TI < 0.9 mΩ/m
• For 5 MHz - 1000 MHz => SA > 105 dB
• For 1000 MHz - 2000 MHz => SA > 95 dB
• For 2000 MHz - 3000 MHz => SA > 85 dB

Where the transfer impedance (TI) defines how effective the shielding is at low frequencies, while the shielding attenuation (SA) defines it in the 30 MHz-to-3000 MHz range.

Specifications
