Coaxial cable with live and mesh made of copper (Cu / Cu) with excellent braiding coverage (82%). It is triple shielded (TSH) so it has a second extra sheet of extra armor. An 18VAtC cable, PVC cover.

Stands out for

• Conductors made of copper
• Class A shielding
• Euroclass Eca

Features

• Outer PVC cover in white
• Characteristic impedance of 75 ohm

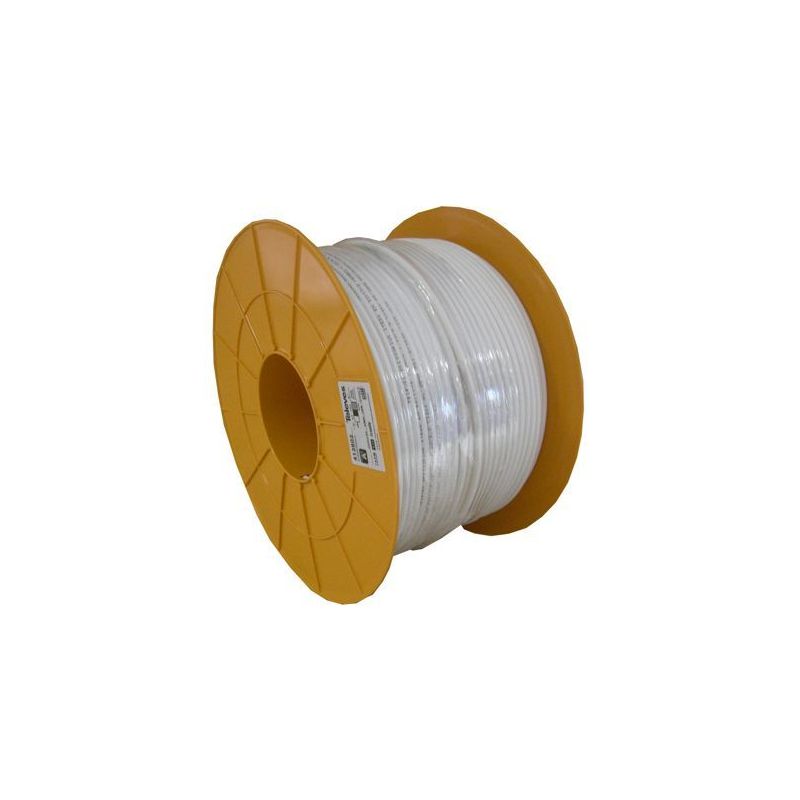

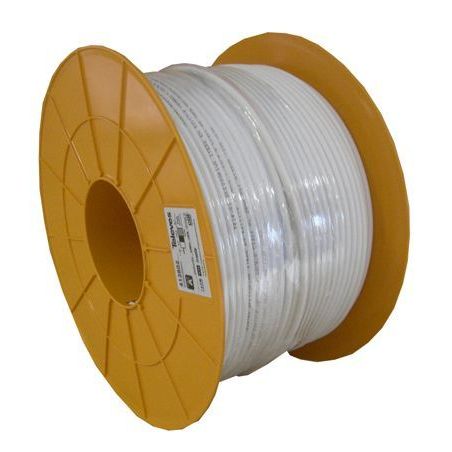

• Plastic coil 250m

Coaxial cable trishield (TSH) Class A ++

With 3 layers of shielding (trishield), these cables are those that provide greater immunity to interference, as they have a very high screening. Its use is recommended in routes with high levels of electromagnetic noise.

Their constructive properties make them Class A ++, complying with EN 50117:

• At 5 - 30 MHz => TI <0.9 mΩ / m
• At 30 - 1000 MHz => SA> 105 dB
• At 1000 - 2000 MHz => SA> 95 dB
• At 2000 - 3000 MHz => SA> 85 dB

Where, the transfer impedance (TI) defines the effectiveness of the shielding at low frequencies, and the shielding attenuation (SA) defines it between 30 and 3000MHz.
