  • Plastic coil 100m coaxial cable SK2003plus Black Televes

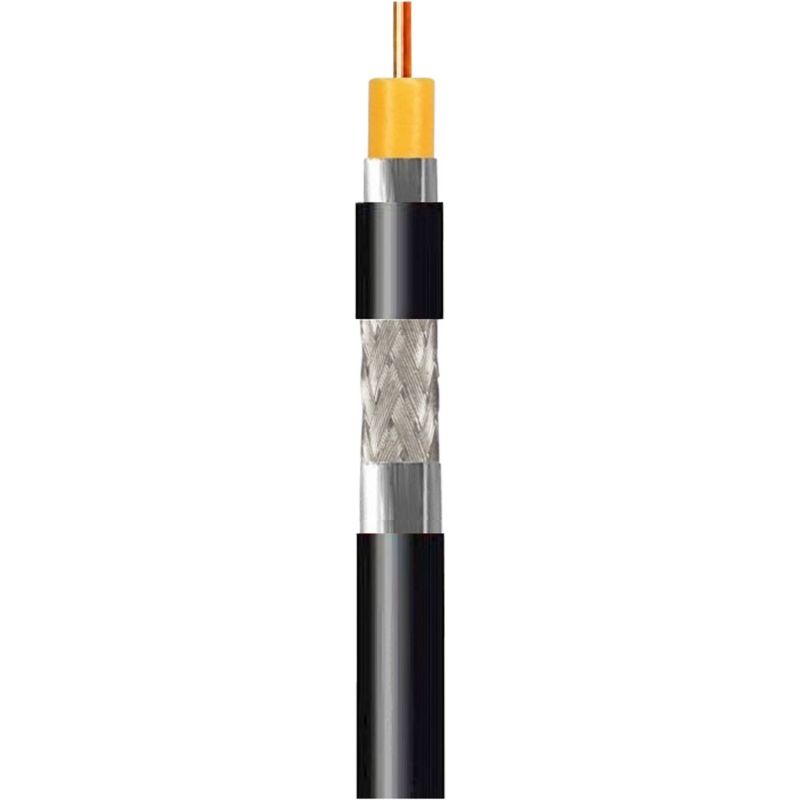

Plastic coil 100m coaxial cable SK2003plus Black Televes

Coaxial cable with both conductors made of copper (Cu/Cu) and excellent braid coverage (82%). Triple shielded (TSH) cable, equipped with a second foil for extra shielded. An 18AtC cable with UV-resistant LSFH sheath. Black. 100m plastic coil. Televes 414002
€1.31
Tax included
Reference televes-414002
Brand Televes
Quantity
Available in 24/48h

Free shipping

Plastic coil 100m coaxial cable SK2003plus Black Televes

€1.31
Coaxial cable with both conductors made of copper (Cu/Cu) and excellent braid coverage (82%). Triple shielded (TSH) cable, equipped with a second foil for extra shielded. An 18AtC cable with UV-resistant LSFH sheath.

Highlights

  • Copper conductors
  • Class A+ shielded
  • Dca Euroclass

Features

  • External UV-resistant LSFH sheath, black colour
  • 75 Ohm characteristic impedance
  • 100m plastic coil



Class A+ Trishield (TSH) coaxial cable

With three shielding layers (Trishield), this cables provide the highest immunity to interference thanks to its very high shielding. Recommended in cases of high electromagnetic noise levels.

They belong in EN 50117 standard Class A+, according to their structural properties:

  • For 5 MHz - 30 MHz => TI < 2.5 mΩ/m
  • For 5 MHz - 1000 MHz => SA > 95 dB
  • For 1000 MHz - 2000 MHz => SA > 85 dB
  • For 2000 MHz - 3000 MHz => SA > 75 dB

Where the transfer impedance (TI) defines how effective the shielding is at low frequencies, while the shielding attenuation (SA) defines it in the 30 MHz-to-3000 MHz range.

Specifications

Type SK2003plus
Standard EN 50117-2-5
EuroClass Dca
Class A+
Inner conductor Ø mm 1.02
Material CU
Res. Ohm/Km <22
Dielectric Ø mm 4.6
Material PEE
Overlapped foil Aluminium + Polyester
Braid Material CuSn (98%Cu)
Dimensions (Ncx Nsx Ø) 24 x 7 x 0.10
Res. Ohm/Km <11
Coverage % 82
2-nd foil Yes
Petrol-Jelly No
Outer sheath Ø mm 6.7
Material LSHF, UV resistant
Minimum bending radius mm 33.5
Screening attenuation @ 1GHz dB >95
Capacitance pF/m 54
Impedance Ohm 75
Transfer impedance (5-30MHz) mOhm/m ≤2.5
Velocity ratio % 84
Attenuations (dB/m)
Frequency (MHz)
5 0.02
47 0.05
90 0.06
200 0.09
500 0.14
800 0.18
1000 0.21
1350 0.24
1750 0.28
2050 0.3
2300 0.32
