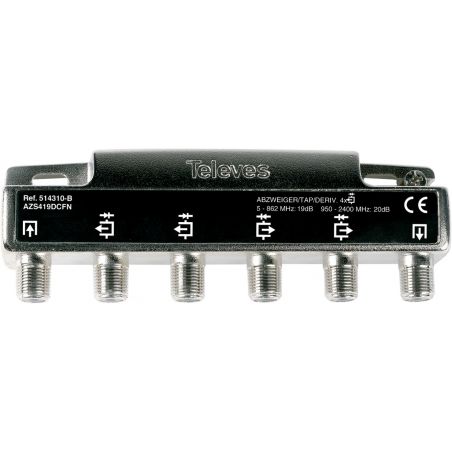

Shunt 5-2400MHz connector F 4 outputs with DC step 19dB B Televes

4 branch shunt and F connectors, for SMATV signals. Due to their shunt losses (19dB), it is recommended to install them in floors 4 to 6 (type B). It is an indoor installation, but it is also suitable for outdoor use, always inside a chest (ref 4163). Televes 514310

€10.55
Tax included
Reference televes-514310
Brand Televes
Quantity
Available in 24/48h

Free shipping
Shunt 5-2400MHz connector F 4 outputs with DC step 19dB B Televes

Shunt 5-2400MHz connector F 4 outputs with DC step 19dB B Televes

€10.55

4 branch shunt and F connectors, for SMATV signals. Due to their shunt losses (19dB), it is recommended to install them in floors 4 to 6 (type B).
It is an indoor installation, but it is also suitable for outdoor use, always inside a chest (ref 4163).

Features

  • F connectors
  • Improves through losses
  • Outstanding shielding
  • Grounding screw provided
  • Bidirectional DC pass between output and input, and from the bridging connections to the input/output

Specifications

Reference 514310
Frequency range MHz 5-2400
47-862 950-2150
Number of outputs 4
Floors 4 & 5
Through loss dB 1.5
Tap loss 19 20
Rejection between taps >20
DC Pass (max.) A 1 (In↔Out / deriv.→In-Out)
