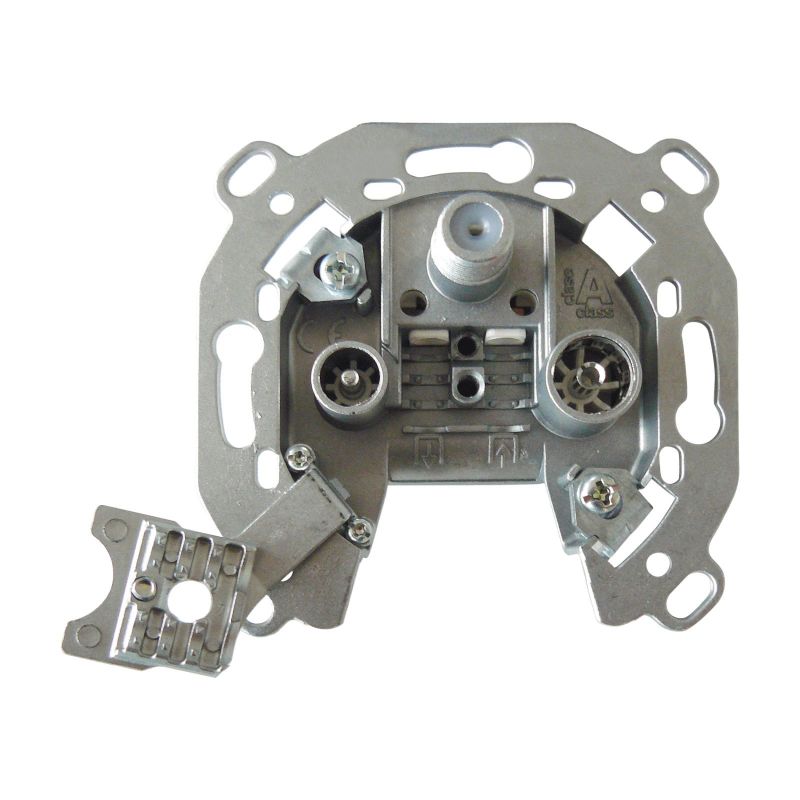

Terminal socket of three connectors. In the lower left is the male CEI/IEC for terrestrial TV, in the lower right the female CEI/IEC for FM (radio) and in the upper part centered an F connector for satellite TV (FI).
The lower part of the chassis is open.

Stands out for

• Large rejection filter between terrestrial and satellite: the SAT signal is filtered in the CEI/IEC connectors of FM-TV, and the terrestrial FM / TV is filtered in the satellite F-connector.
• Automated robotized online manufacturing
• High shielding
• Great isolation between departures

Features

• Made in Zamak, high resistance
• DC step from the SAT connector to the input
• Compatible with coaxial cables with cover diameter Ø 5 ... 7mm

Tomas Televes: Fixation without screw

A class A shot full of advantages:

• The live connects by simple push, you do not have to tighten any screw, but with an equivalent clamping force
• Supports living diameters between 0.65 to 1.2mm and outer diameters of the cable from 5 to 6.9mm
• Conical guide, connector type "F" to introduce the live easily
• Wide margin in the length of the live (5 to 15mm) that makes the short between live and mesh difficult
• Tilting and self-supporting full-opening clamp
• The clamp consists of 3 rows serrated in 9mm for a perfect fastening of the mesh
• Perforation of the printed circuit to make compatible the fixation screw of the trims
• Rounded edges to avoid cuts
• Class A shielding

In addition, this product range has several engravings on the chassis:

• CE Marking
• Numerical and logical reference
• Indications of inputs and outputs
• Dimensions of cable peeling
