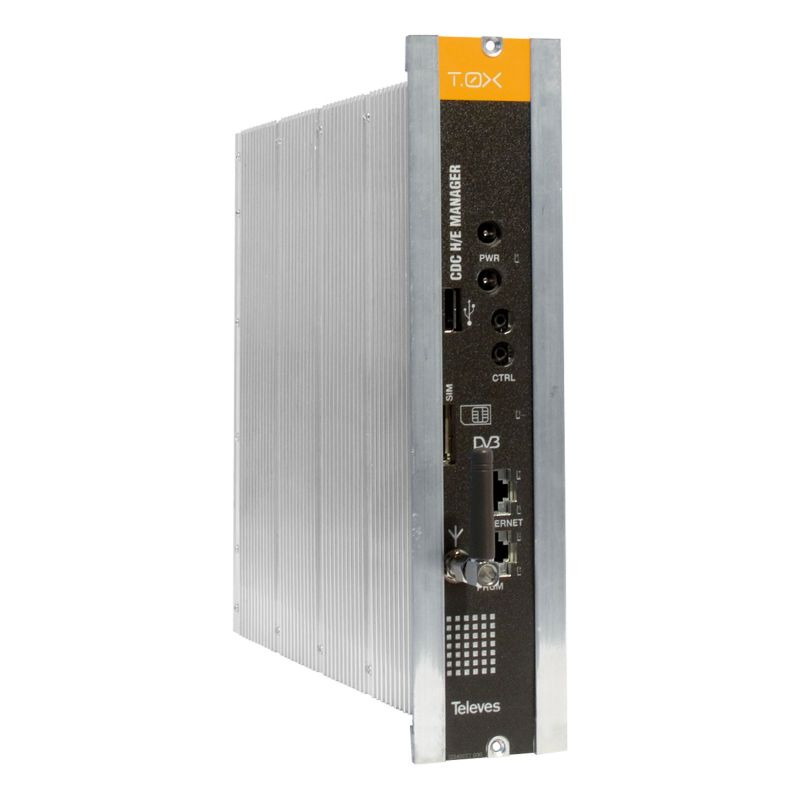

T.0X controller headers CDC IP/GSM Televes
Device used for the remote control and monitoring of a T.0X Televes headend. The IP-network access methods are implemented using an GSM/GPRS internal modem. These devices establish a connection with a Link server located in the Televes premises, which provides direct connection between installer and headend. Televes 555901
€859.91
Tax included
Reference
televes-555901
Brand
Televes
T.0X controller headers CDC IP/GSM Televes
€859.91
Device used for the remote control and monitoring of a T.0X Televes headend. The IP-network access methods are implemented using an GSM/GPRS internal modem. These devices establish a connection with a Link server located in the Televes premises, which provides direct connection between installer and headend.
Features
- The management and control of headers is done through a centralized service called "Televes Services". This portal is located in a Televes Service Center, which the user accesses after authenticating.
- Equipped with a RISC Microcomputer and a GNU / Linux Operating System that guarantee reliability in the management of interfaces, protocols and peripherals.
Specifications
| Reference | 555901 | ||||
| FIRMWARE | Operating system | Linux Kernel 2.6.16 | |||
| Bootloader | U-boot 1.1.3 | ||||
| File system | jffs2 | ||||
| HARDWARE | RADIO GSM/GPRS | Frequency | MHz | GSM | 850/900 |
| DCS | 1800 | ||||
| PCS | 1900 | ||||
| Bandwidth | EGSM | 80 | |||
| GSM | 150 | ||||
| DCS | 170 | ||||
| PCS | 140 | ||||
| Transmission power | dBm | GSM | +33 | ||
| DCS | +30 | ||||
| PCS | +30 | ||||
| Sensitivity | GSM | -107 | |||
| DCS | -106 | ||||
| PCS | -106 | ||||
| CPU | ARM920T™ ARM | ||||
| MEMORY | Flash | MB | 8 | ||
| SDRAM | 64 | ||||
| NAND Flash | 128 x 8bit | ||||
| CONNECTIONS | USB | 2.0 Full Speed Host (12 Mbps) | |||
| RJ45 (1) | Ethernet 10/100 Base-T | ||||
| RJ45 (2) | Programming unit PCT-5.0 | ||||
| SIM | Cards reader | ||||
| F | - | ||||
| GENERAL | Powering voltage | Vdc | 24 | ||
| Consumption | mA | 300 | |||
| Ingress protection | IP | 20 | |||
| Dimensions (W x H x D) | mm | 50 x 216 x 185 (incl. antenna GPRS in ref. 555901) | |||
