  • Encoder Modulador DVBT/DVBC TWIN HDMI composite (QAM Annex A) Televes

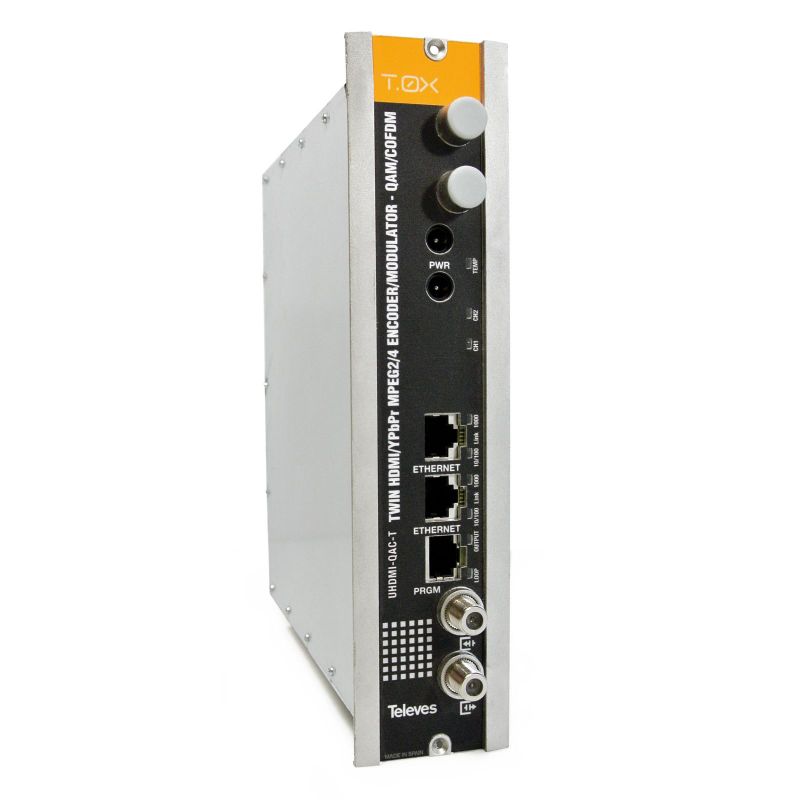

Encoder Modulador DVBT/DVBC TWIN HDMI composite (QAM Annex A) Televes

The generated content consists of two services; each of them can come from up to three types of input format (HDMI, YPbPr components or CVBS composite video). They generate DVBT, DVBC (QAM Annex A) or ITUJ83 (QAM Annex B) output. These modules can encode the video in MPEG-2 format or in H.264 (HDTV). Televes 563832

€2,221.56
Tax included
Reference televes-563832
Brand Televes
Quantity
Available in 24/48h

Free shipping

Encoder Modulador DVBT/DVBC TWIN HDMI composite (QAM Annex A) Televes

€2,221.56

The generated content consists of two services; each of them can come from up to three types of input format (HDMI, YPbPr components or CVBS composite video). They generate DVBT, DVBC (QAM Annex A) or ITUJ83 (QAM Annex B) output. These modules can encode the video in MPEG-2 format or in H.264 (HDTV).

Stands out for

  • Perfect synchronization between image and audio
  • Compatibility with multiple TV formats, resolutions and sizes
  • Editing of all modulation parameters and signal coding
  • Configurable through web interface and with a PCT5.0 programmer
  • High output power without the need for an extra amplifier
  • Standard multi output format
  • Excellent output quality (MER> 40dB)
  • Led diodes for device monitoring and signal status
  • Energy efficient due to its low consumption
  • Integrated RF combiner and Ethernet switch
  • Automatic and remote firmware update
  • Configuration via web interface embedded in the encoder

Features

  • Multiple types of input signals: HDMI, CVBS, YPbPr, SPdIf audio (ref.563832), etc.
  • HDCP (High-bandwidth digital Content Protection) feature that can be disabled by the property with authorization from the content provider

Specifications

Reference 563832
Inputs
Video   2 gr. 3 x RCA (Y, Pb, Pr)
2 gr. 1 x RCA (CVBS)
Audio

2 gr. 2 x RCA (L, R)
2 gr. 1 x RCA (Digital)
2 gr. 1 x Toslink (Optical)
Video + Audio   2 gr. 1 x HDMI
Video Encoder
Output format MPEG-2 / H264
Resolution

480i, 480p, 576i, 576p, 720p, 1080i & 1080p

Auto-scan of the input resolution
Display format 4: 3, 16: 9 and transparent
GOP   10, 12, 15, 16, 18, 20, 24 ó 30
Audio encoder
Output format Dolby Digital AC-3
(only in digital)
or MPEG1 Layer2
(analog input
 or HDMI PCM)
Sampling rate kHz 48
Output
Frequency band MHz 46...862
Max output level dBµV 115 (103 with output loop enabled)
MER  dB >40
Parasites dBc -60
QAM Modulation 16, 32, 64, 128, 256
BaudRate Mbaud 6.9
Roll-off % 15
Code Reed Solomon
Mode spectre Normal / Inverted
Step frequency kHz 250
COFDM Modulation QPSK, 16QAM, 64QAM
Interval of guard µS 1/4, 1/8, 1/16, 1/32
FEC  1/2, 2/3, 3/4, 5/6, 7/8
Bandwidth MHz 6, 7, 8
Cell_id  Editable
Step frequency kHz 125 / 166
PSI Transport Stream ID  Editable
Original Network ID  Editable
Network ID  Editable
LCN  Editable
NIT  Manuel / Automatic
SDT  Manuel / Automatic
Tipo LCN  Generic / UK / NorDig V1 / NorDig V2
Network Name  Editable
Service PID  Editable
Service Name  Editable
Service ID Editable
General
Supply voltage Vdc 24
Consumption W <20.4
Protection sign IP 20
Dimensions (L x H x Pr) mm 50 x 216 x 180
