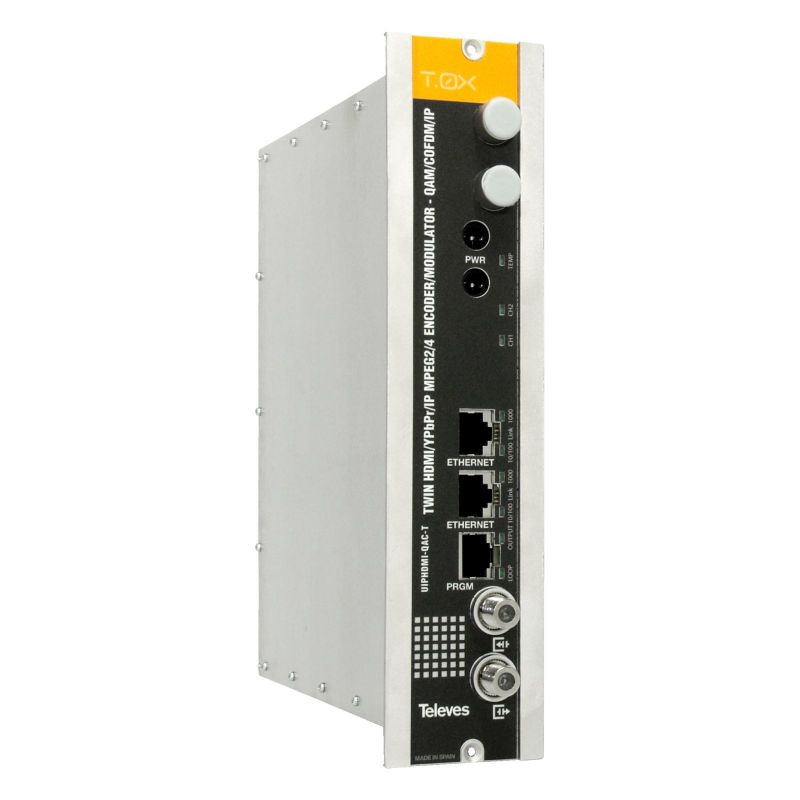

  • Encoder Modulador DVBT/DVBC TWIN IP/HDMIcomposite (QAM Annex A) Televes

Encoder Modulador DVBT/DVBC TWIN IP/HDMIcomposite (QAM Annex A) Televes

Device that has two modes of operation: as an AV -IP/RF Encoder in which it converts Audio / Video signals to an IP stream as well as an RF multiple (DVB-T or DVB-C), and as an AV Encoder / IP - RF where it converts Audio / Video signals and IP streaming services into an RF multiple (DVB-T or DVB-C). Televes 563852

€2,468.40
Tax included
Reference televes-563852
Brand Televes
Quantity
Available in 24/48h

Free shipping

Encoder Modulador DVBT/DVBC TWIN IP/HDMIcomposite (QAM Annex A) Televes

€2,468.40

Device that has two modes of operation: as an AV -IP/RF Encoder in which it converts Audio / Video signals to an IP stream as well as an RF multiple (DVB-T or DVB-C), and as an AV Encoder / IP - RF where it converts Audio / Video signals and IP streaming services into an RF multiple (DVB-T or DVB-C).

Stands out for

  • Perfect synchronization between image and audio
  • Compatibility with multiple TV formats, resolutions and sizes
  • Editing of all modulation parameters and signal coding
  • Configurable through web interface and with a PCT5.0 programmer
  • High output power without the need for an extra amplifier
  • Standard multi output format
  • Excellent output quality (MER> 40dB)
  • Led diodes for device monitoring and signal status
  • Energy efficient due to its low consumption
  • Integrated RF combiner and Ethernet switch
  • Automatic and remote firmware update
  • Configuration via web interface embedded in the encoder

Features

  • Multiple types of input signals: HDMI, CVBS, YPbPr, SPdIf audio (ref.563832), etc.
  • HDCP (High-bandwidth digital Content Protection) feature that can be disabled by the property with authorization from the content provider

Specifications

Reference 563852
Inputs
Video   2 gr. 3 x RCA (Y, Pb, Pr)
2 gr. 1 x RCA (CVBS)
Audio

2 gr. 2 x RCA (L, R)
2 gr. 1 x RCA (Digital)
2 gr. 1 x Toslink (Optical)
Video + Audio   2 gr. 1 x HDMI
IP Multicast 2 RJ45 ports Gbe SPTS or MPTS switch (UDP / RTP)
Video Encoder
Output format MPEG-2 / H264
Resolution

480i, 480p, 576i, 576p, 720p, 1080i & 1080p

Auto-scan of the input resolution
Display format 4: 3, 16: 9 and transparent
GOP   10, 12, 15, 16, 18, 20, 24 ó 30
Audio encoder
Output format

Dolby Digital AC-3 (only in digital) or

MPEG1 Layer2 (analog input
 or HDMI PCM)
Sampling rate kHz 48
Output
Frequency band MHz 46...862
Max output level dBµV 115/55
(103/43  with output loop enabled)
MER  dB >40
Parasites dBc -60
QAM Modulation 16, 32, 64, 128, 256
BaudRate Mbaud 6.9
Roll-off % 15
Code Reed Solomon
Mode spectre Normal / Inverted
Step frequency kHz 250
COFDM Modulation QPSK, 16QAM, 64QAM
Interval of guard µS 1/4, 1/8, 1/16, 1/32
FEC  1/2, 2/3, 3/4, 5/6, 7/8
Bandwidth MHz 6, 7, 8
Cell_id  Editable
Step frequency kHz 125 / 166
IP Transport Stream SP/MP 2 SPTS IP multicast outputs
(UDP or RTP) / 1 MPTS output
PSI Transport Stream ID  Editable
Original Network ID  Editable
Network ID  Editable
LCN  Editable
NIT  Manuel / Automatic
SDT  Manuel / Automatic
Tipo LCN  Generic / UK / NorDig V1 / NorDig V2
Network Name  Editable
Service PID  Editable
Service Name  Editable
Service ID Editable
General
Supply voltage Vdc 24
Consumption W <20.4
Protection sign IP 20
Dimensions (L x H x Pr) mm 50 x 216 x 180
