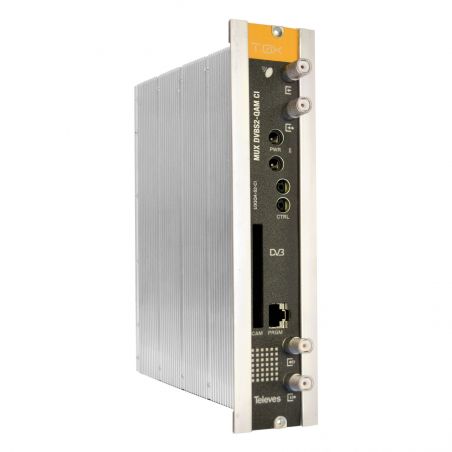

Transmodulator with Remultiplexing Single DVBS/S2 - DVBC (QAM Annex A) with CI Televes

Transmodulator that generates a QAM multiplex from the multiplexing of services available in up to 3 different SAT TV transponders. Extracted from a single satellite through the input loop itself to the header. Televes 564101

€1,357.62
Tax included
Reference televes-564101
Brand Televes
Quantity
Available in 24/48h

Free shipping

Transmodulator with Remultiplexing Single DVBS/S2 - DVBC (QAM Annex A) with CI Televes

€1,357.62

Transmodulator that generates a QAM multiplex from the multiplexing of services available in up to 3 different SAT TV transponders. Extracted from a single satellite through the input loop itself to the header.

Highlights

  • Total or selective removal of the services present in the received transponder, to avoid them being detected (and memorized) by the receivers (STB)
  • Editable TS_ID, which makes programme/service detection easier on the receiver (STB), since the channel scan is based on this identifier
  • LCN (Logical Channel Number) allows the assignment of the services present in the output to an LCN, which makes the ordering of the channels easier on the receivers (STB)
  • Provides information regarding both the occupation of each specific service and the global output occupation, which allows the optimization of the services being distributed
  • Can be remotely controlled using CDC (Headend control)

Features

  • S_ID editable to prevent the receivers (STB) in an installation from retuning when the output-Multiplex's services are modified
  • Editable Network_ID, Original Network_ID and Cell_ID allow the control of network identifiers
  • The encrypted satellite channels are transformed into free DTT services through the CI interface and the appropriate CAM module. Depending on the CAM type used (standard/professional), one or several services may be opened for free reproduction

Specifications

Reference 564101
SAT INPUT SAT Input frequency range MHz 950...2150
Frequency steps 1
Input level dBμV 42 - 82
Loop-through losses dB ≤ 1.5
LNB powering Vdc 13V/17V/ OFF - 22KHz (ON/OFF)
Input return losses (typ.) dB > 10
Input impedance Ω 75
DVB-S Symbol rate (Modulation) Mbaud 2 - 42.5 (QPSK)
FEC inner code Viterbi (1/2, 2/3, 3/4, 5/6, 7/8)
FEC outer code RS (188/204)
Roll-Off factor % 35
DVB-S2 Symbol rate (Modulation) Mbaud 10 - 30 (QPSK, 8PSK)
FEC inner code LDPC (1/2, 1/3, 1/4, 2/3, 2/5, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10)
FEC outer code BCH (Bose-Chaudhuri-Hocquenghem)
Roll-Off factor % 20, 25, 35
DVB-C OUTPUT QAM Modulation (Constellation) 16, 32, 64, 128, 256QAM
Symbol rate Mbaud < 6.9
Scrambling DVB EN 300429
Interleaving DVB EN 300429
FEC outer code RS (188, 204)
Roll-Off factor % 15
PCR Correction Yes
Services deleting Yes
Network_ID Yes
Original Network_ID Yes
TS_ID Yes
LCN Yes
Spectral inversion Normal, Inverted
Channel bandwidth Mhz 8.3
RF Output frequency 46...862
Frequency steps KHz 250
Output level (max. typ.) dBμV  80 ± 5
Output level regulation margin dB >15
Output loop-through losses

≤ 1.5
Output return losses (typ.) > 12
Impedance Ω 75
GENERAL Powering voltage Vdc 24
Consumption mA 520 (0 LNB - 0 CAM)
620 (0 LNB - 1 CAM)
870 (1 LNB - 1 CAM)
1120 (2 LNBs - 1 CAM)
Protection index IP 20
