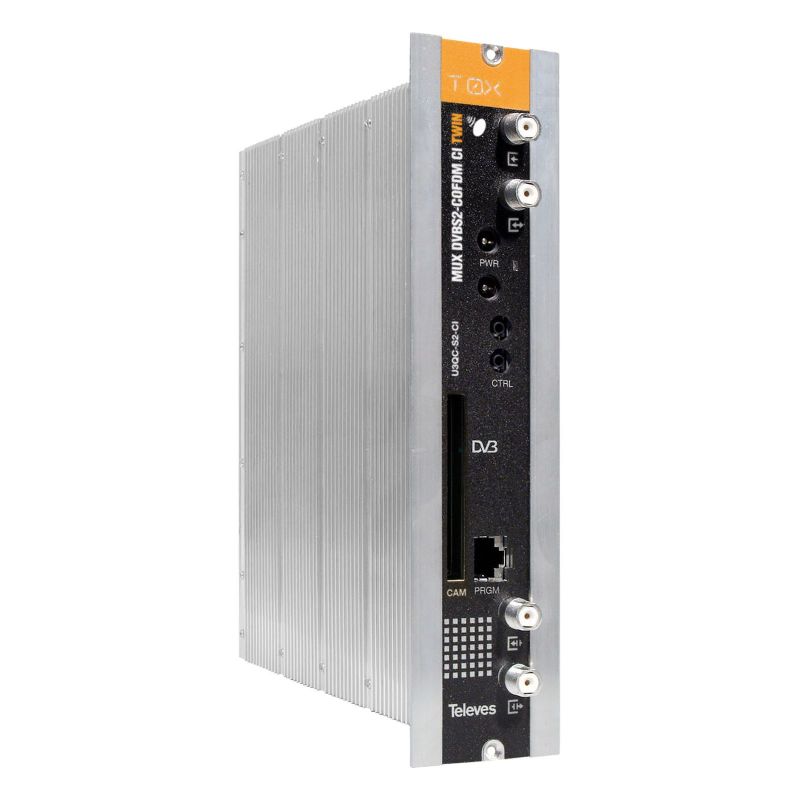

Transmodulator that generates two COFDM multiplexes from the multiplexing of services available in up to 3 different TV SAT transponders. These can be extracted from 2 different satellites (2 independent SAT-IF inputs), by means of the input loop to the header itself.

Stands out for

• Total or selective elimination of the services present in the received transponder, so that they are not detected (and memorized) by the receivers (STB)
• Editable TS_ID, which facilitates the detection of programs / services in the receiver (STB) because they perform the scanning of channels based on this identifier
• LCN (Logical Channel Number), allows to assign to the services present in the output an LCN, which facilitates the ordering of the channels in the receivers (STB)
• It provides information about the occupation of each service and the total occupation of the output, which allows to optimize the distributed services
• Remotely controllable with the CDC (Head Control)

Features

• Insertion of null packages ("Stuffing"), allows faster scanning by the receiver (STB)
• Filtering PID, allows to eliminate within a multiplex, those services that do not interest (use of occupation), very interesting with the use of CAM
• S_ID editable, to avoid retuning of the receivers (STB) of an installation when the services of the output multiplex are changed
• Network_ID, Original Network_ID and Cell_ID editable, allows to control the network identifiers
• Through the CI interface and the corresponding CAM module, the coded satellite channels are transformed into free DTT services. Depending on the CAM used (standard / professional), one or several services can be opened for open viewing

Specifications
