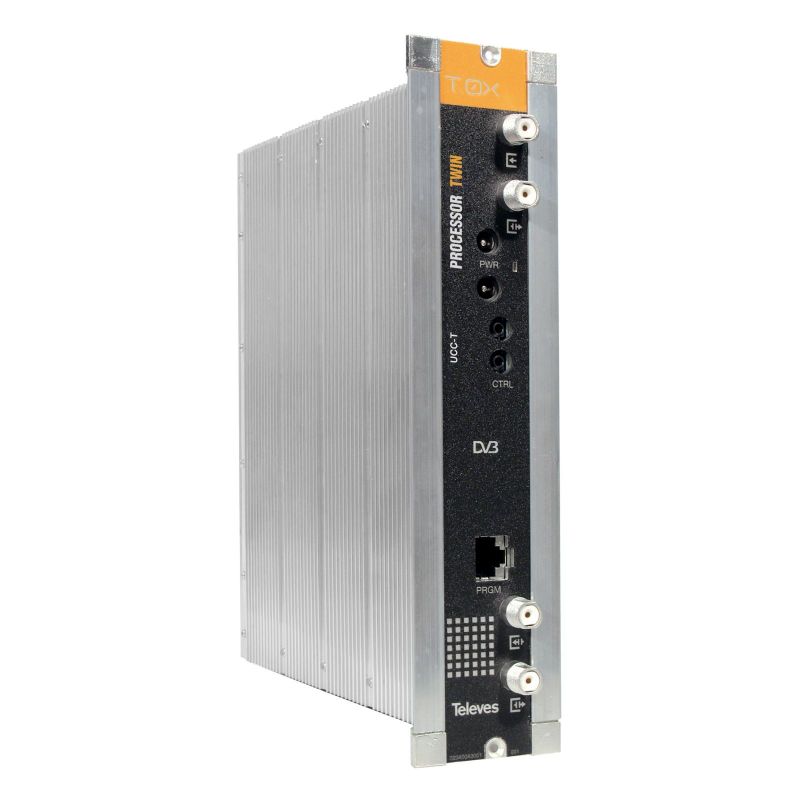

Processor Channel A/D Twin Televes
search
  • Processor Channel A/D Twin Televes

Processor Channel A/D Twin Televes

Module that processes 2 input channels, analog or digital, regardless of the type of service, to function as a channel converter (using different input and output channels) or as an amplifier (with the same input and output channel). Televes 564901

€617.10
Tax included
Reference televes-564901
Brand Televes
Quantity
Available in 24/48h

Free shipping
Processor Channel A/D Twin Televes

Processor Channel A/D Twin Televes

€617.10

Module that processes 2 input channels, analog or digital, regardless of the type of service, to function as a channel converter (using different input and output channels) or as an amplifier (with the same input and output channel).

Stands out for

  • SAW Filtering (Surface Acoustic Wave). It provides high selectivity, avoiding interfering adjacent channels.
  • Adjustable slope, to balance the signal within the bandwidth.
  • Remotely controllable with the CDC (Head Control)

Features

  • In converter mode, it allows assigning a different output channel to the input channel (Twin).
  • In amplifier mode, it allows to equalize and filter a Digital Multiplex to adapt it to the levels of the rest of the signals.

Specifications

Reference 564901
INPUT
A/D		 RF Input frequency MHz 47...862
Frequency steps KHz 125 (digital), 166 (digital), 250 (analog)
Engagement margin ± 500
Gain input loop dB 0 ± 3
Input leves dB 50 a 80
Bandwidth (filter) MHz 6 /7/ 8
Power preamplifiers Vdc 0, 12, 24
Return losses dB > 10
Impedance Ω 75
OUTPUT
A/D		 RF Output Frequency MHz 47...862
Frequency steps KHz 125 (digital), 166 (digital), 250 (analog)
Maximum output level dBμV 80 ± 5 typ.
margin dB > 15
Spurious level dBc > 60
END (Equivalent Noise Degradation) dB < 2
Passage losses ≤ 1,5
Return losses > 12
Impedance Ω 75
GENERAL Feeding Vdc 24
Consumption mA 400 (0 Prev.), 450 (1 Prev.)
Protection index IP 20
