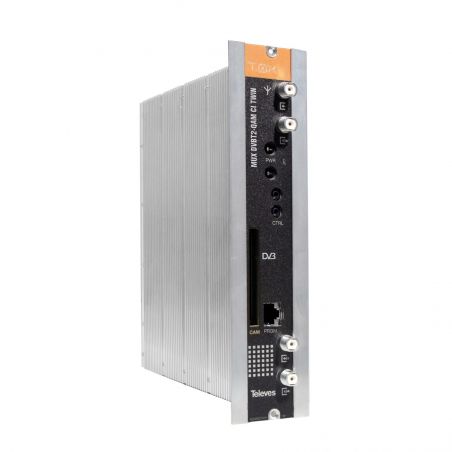

Transmodulator that generates one or two DVB-C multiplexes from the multiplexing of services available in 2 DVB-T or DVB-T2 muxes.

Stands out for

• Total or selective elimination of the services present in the received transponder, so that they are not detected (and memorized) by the receivers (STB)
• Editable TS_ID, which facilitates the detection of programs / services in the receiver (STB) because they perform the scanning of channels based on this identifier
• LCN (Logical Channel Number), allows to assign to the services present in the output an LCN, which facilitates the ordering of the channels in the receivers (STB)
• It provides information about the occupation of each service and the total occupation of the output, which allows to optimize the distributed services
• Remotely controllable with the CDC (Head Control)

Features

• Insertion of null packages ("Stuffing"), allows faster scanning by the receiver (STB)
• It provides information about the occupation of each service and the total occupation of the output, which allows to optimize the distributed services
• Network_ID, Original Network_ID and Cell_ID editable, allows to control the network identifiers
• S_ID editable, to avoid retuning of the receivers (STB) of an installation when the services of the output multiplex are changed
• PID filtering, allows to eliminate within a multiplex, those services that do not interest (use of the occupation). Very interesting function with the use of CAM
• Adaptation DVB-T2, to make compatible those TVs that do not have a DVB-T2 tuner

Specifications
