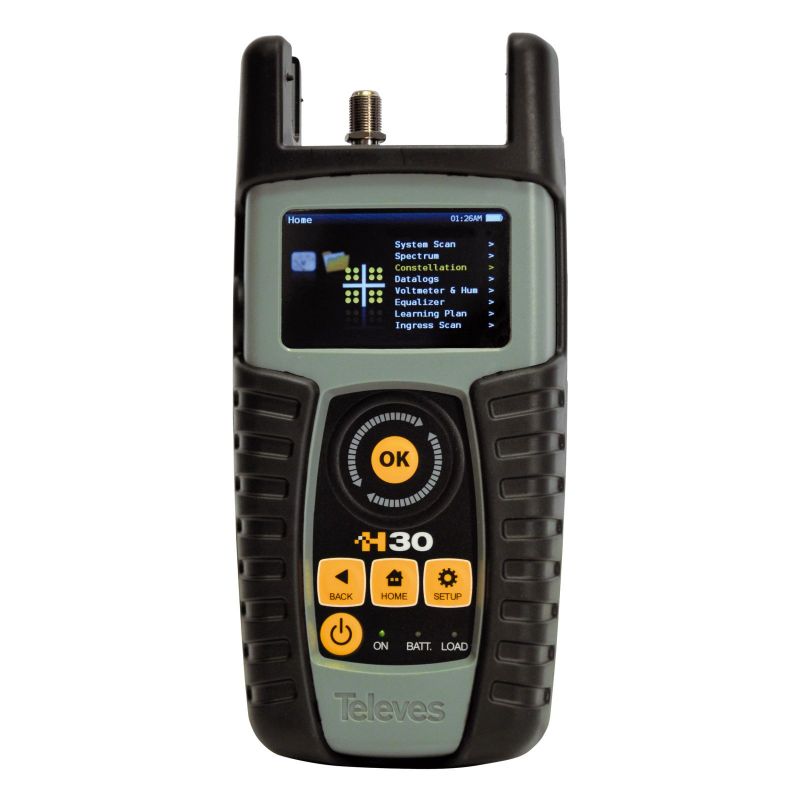

Field Meter H30 (DVB-C) + Remote CTR + IP Test Televes
H30 est un appareil de mesure portable qui possède tout le nécessaire pour l'installation et la maintenance de réseaux de télévision avec des signaux DVB-C analogiques et numériques. Il souligne sa fonction de Web de contrôle à distance qui permet de surveiller les installations depuis n'importe quel appareil mobile (Smartphone, tablettes, ordinateurs). Televes 593102
€1,558.92
Tax included
Reference
televes-593102
Brand
Televes
Field Meter H30 (DVB-C) + Remote CTR + IP Test Televes
€1,558.92
H30 is a handheld meter that has everything necessary for the installation and maintenance of TV networks with analog and digital DVB-C signals. It emphasizes its function of remote control web that allows to monitor installations from any mobile device (Smartphone, tablets, computers).
Maximum functionality in the smallest dimensions.
Features
- Measurement and remote control via web interface
- Simple and intuitive operation
- Lightweight and robust
- Indication of measurements by "step / failure" indicators (Quality Check Marks)
- Automatic detection of parameters: the H30 automatically detects type (A / D) and parameters of the signal to be measured (constellation, symbol rate, etc.)
Specifications
| Reference | 593102 | |
| Frequency | MHz | 5 ... 1002 |
| Resolution | 50 | |
| Input impedance | 75 | |
| input level | 45 - 125 | |
| Type of Demodulation | ITU-T J.83 Annex A/B/C | |
| Format Digital channel | 16/32/64/128/256 QAM, QPSK | |
| Symbol Rate | Msps | 2 ti 6.9 |
| MER | dB | dB up to 40 |
| Digital Measures | Power MER C / N PreBER PostBER Constellation |
|
| Analog measurements | Video Carrier Level Audio Carrier Level V/A ratio C/N |
|
| General specifications | ||
| Screen type | TFT Color | |
| Screen dimensions | pixel | 400 x 240 (2.8”) |
| Weight | g | 510 |
| Dimensions (W x H x D) | mm | 175 x 100 x 52 |
| Output voltage adapter | Vdc | 12 |
| Battery Voltage Li Ion | Vdc | 7.2 |
| Li Ion Battery Charge | mAh | 2900 |
| Battery life from full charge | h | >5 |
| Operating temperature | ºC | -5 to 45 |
