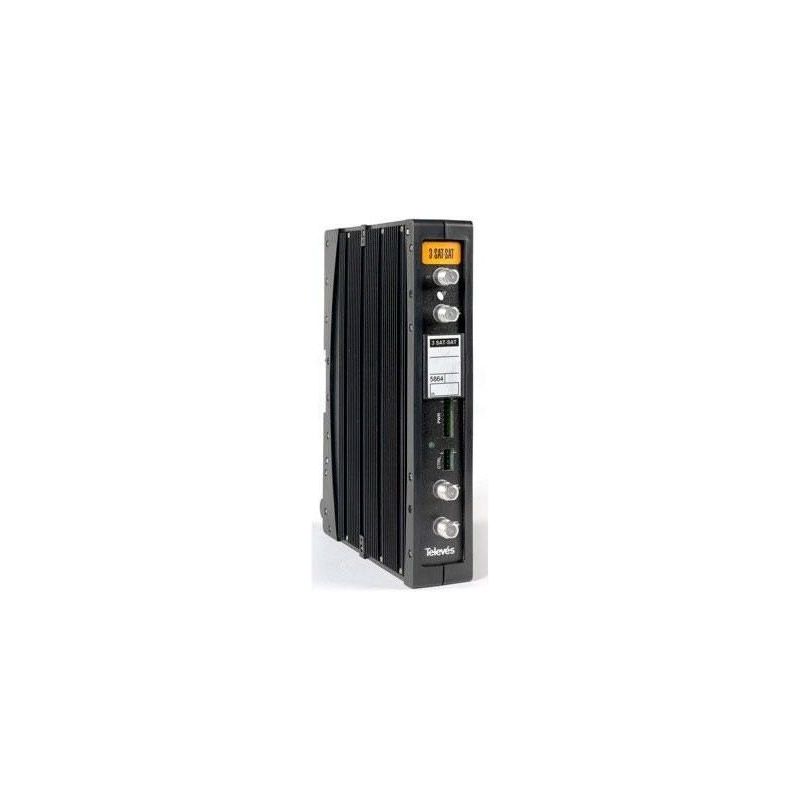

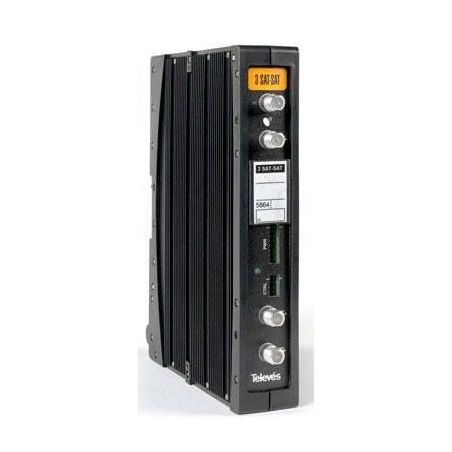

Triple controllable FI/FI satellite processor Televes
search
  • Triple controllable FI/FI satellite processor Televes

Triple controllable FI/FI satellite processor Televes

Modular system of processors that allows the selection of any channel of the IF band and its displacement to another channel within the same band. Televes 586401

€535.29
Tax included
Reference televes-586401
Brand Televes
Quantity
Available in 24/48h

Free shipping
Triple controllable FI/FI satellite processor Televes

Triple controllable FI/FI satellite processor Televes

€535.29

Modular system of processors that allows the selection of any channel of the IF band and its displacement to another channel within the same band.

Features

  • Input frequency range MHz 950-2150
  • Output frequency range
  • Input / output tuning frequency step 1
  • Passage losses input dB <1.5
  • Output losses
  • Output impedance Ohms 75
  • Input level dB -50 to -25
  • Output level -25 + -5

Specifications

Reference 586401
Input frequency range MHz 950-2150
Output frequency range
Input / output tuning frequency step 1
Input losses dB <1.5
Output losses
Output impedance Ohms 75
Input level dB -50 a -25
Output level -25+-5
BW of the input filter MHz 10 to 72
(selectable in 2 MHz step)
Operating temperature ºC 0 to 40
LNB power Vdc 13 / 17 / OFF
22 KHz /OFF
General
Consumption mA 5V: 1100
15V: 50
Protection index IP 20
