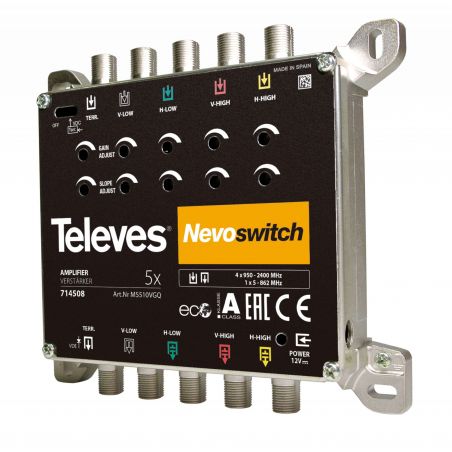

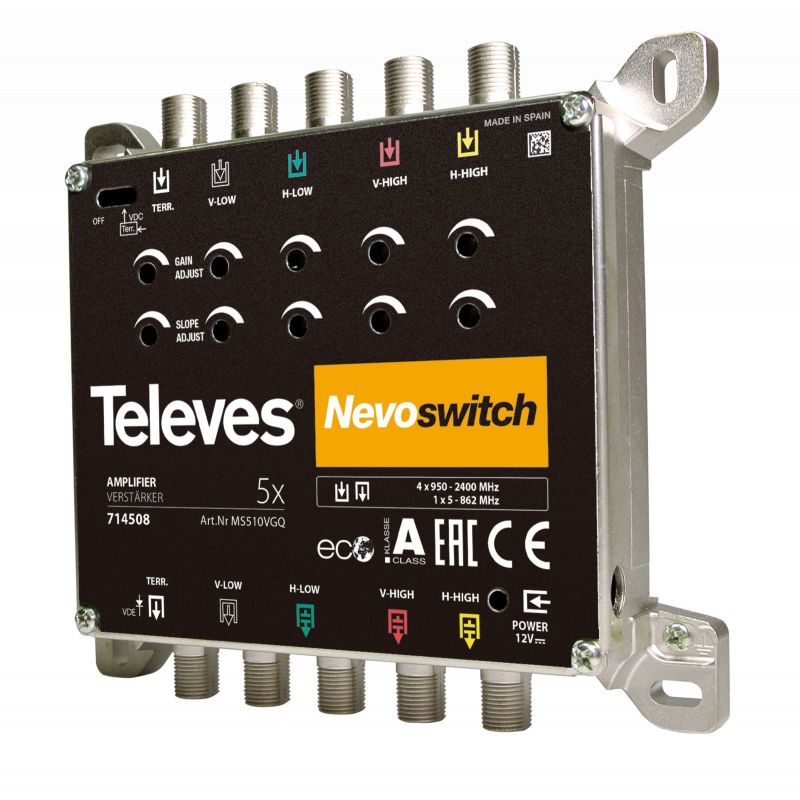

NevoSwitch Amplifier 5x5 "F" 12/15dB 110 dBμV Televes
NevoSwitch amplifier with 5 inputs (one terrestrial and the four polarities of a satellite) that allows increasing the number of users of the installation by optimizing the signal that reaches each one. Amplification approx 12dB in terrestrial and 15dB in satellite. Televes 714508
€119.05
Tax included
Reference
televes-714508
Brand
Televes
NevoSwitch Amplifier 5x5 "F" 12/15dB 110 dBμV Televes
€119.05
NevoSwitch amplifier with 5 inputs (one terrestrial and the four polarities of a satellite) that allows increasing the number of users of the installation by optimizing the signal that reaches each one. Amplification approx 12dB in terrestrial and 15dB in satellite.
Stands out for
- High output level
- Switch to feed ground preamps (VDC) or not (OFF)
- Adjustment of gain (10dB) and slope (7dB) in an individualized manner
- The feeding is carried out by the VL input / output
- The rest of the outputs do not let the current pass, only from the inputs upwards
Features
- Very compact
- Made of zamak
- Identification of colors at the entrance and at the exit
- 12V power
- Reduced consumption
Specifications
| Type | 5x5 | ||
| Bandwidth | MHz | SAT | 950 ... 2400 |
| RF | 47 ... 862 | ||
| Input level | dBμV | SAT EN50083-3 IM35dBc |
110 |
| TERR DIN 45004-B | 92 | ||
| Gain | dB | SAT | 15 |
| TERR | 12 | ||
| Regulation | 10 | ||
| Slope | 0...7 | ||
| Isolation | dB | >25 | |
| DC Step | In-Out / Out-In | ||
| Max consumption total | mA | PSU(3) | 210 |
| Temperature range | ºC | –5...+45 | |
| Protection index | IP | 20 | |
