  • Focused focus LNB Quattro Ha-Va-Hb-Vb Televes

Focused focus LNB Quattro Ha-Va-Hb-Vb Televes

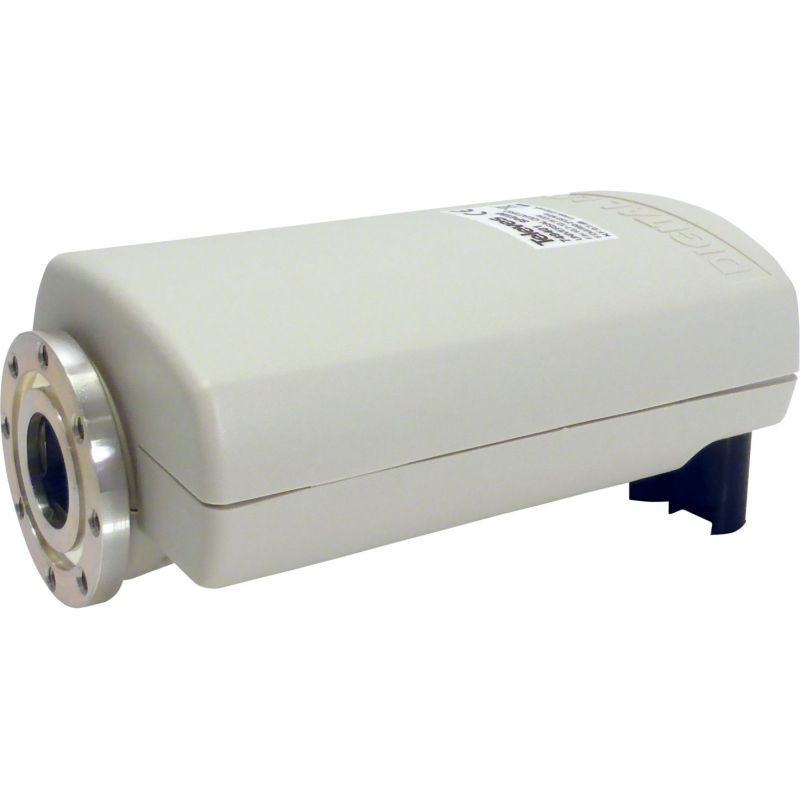

LNB converter quattro centered focus, with 4 outputs, each with a combination of polarity / fixed band (Ha, Hb, Va, Vb). Televes 749401

€122.14
Tax included
Reference televes-749401
Brand Televes
Quantity
Out-of-Stock

Free shipping

LNB converter quattro centered focus, with 4 outputs, each with a combination of polarity / fixed band (Ha, Hb, Va, Vb).

Stands out for

  • Compact design
  • Great profit
  • Low noise figure

Features

  • Reduced weight
  • Low consumption
  • Power through the receiver or multiswitch
  • Simple connection
  • Valid for extreme temperatures

Specifications

Connector   4 x "F" female
Output 1 - Horizontal High
Output 2 - Horizontal Low
Output 3 - Vertical High
Output 4 - Low Vertical
Output impedance Q 75
Power V = +10...19V 210mA max.
Output frequency MHz B-I: 950 .. 1950 B-II: 1100 .. 2150
Input frequency MHz B-l: 10700..11700 B-ll: 11700..12750
Noise figure dB (typ.) 0.3
Osc frequency GHz O.L.1 = 9.75
Local O.L.2 = 10.6
Stability Osc. Local MHz ± 2
Noise phase dBc/Hz -90 max (@10 KHz)
Gain dB (typ.) 55
Dimensions mm 137 x 55 x 82
Weight g 400
Operating temperature °C -40...+70
