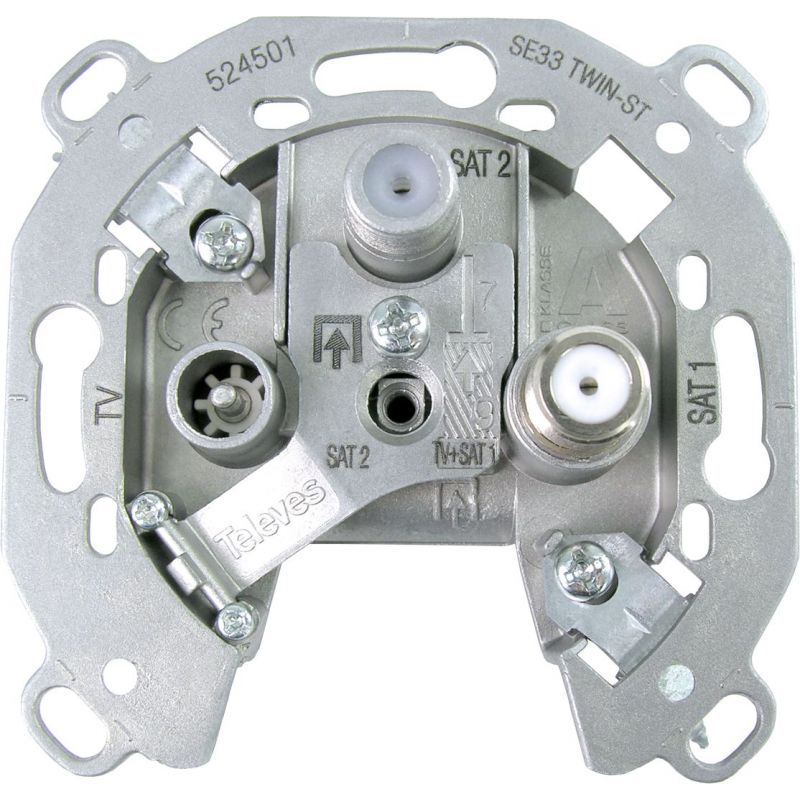

Terminal socket 3 connectors TV/FM-SAT1-SAT Televes
search
  • Terminal socket 3 connectors TV/FM-SAT1-SAT Televes

Terminal socket 3 connectors TV/FM-SAT1-SAT Televes

Terminal socket with three connectors and 2 inputs. It consists of two connectors F: SAT1 for the satellite signal of input 1 (filtered), and SAT2 for the satellite and terrestrial signal of input 2 (all band 5-2400MHz). CEI male connector for radio (FM) and terrestrial TV, coming from input 1 of the socket. The lower part of the chassis is open. Televes 524501

€106.00
Tax included
Reference televes-524501
Brand Televes
Quantity
Available Now

Free shipping
Terminal socket 3 connectors TV/FM-SAT1-SAT Televes

Terminal socket 3 connectors TV/FM-SAT1-SAT Televes

€106.00

End outlet equipped with three connectors and two inputs. Equipped with two F connectors: SAT1 on the lower right side for the satellite signal corresponding to input 1 (filtered), and SAT2 on the top for the satellite signal corresponding to input 2 (full bandwidth 5-2400 MHz). The IEC male connector for radio (FM) and terrestrial TV from outlet's input 1, is located on the lower left side.
The lower part of the chassis is open.

Highlights

  • High-rejection terrestrial-satellite separation filter: the SAT signal is filtered in the FM/TV IEC connector, while the terrestrial FM/TV signal is filtered in the satellite (SAT1) F connector.
  • Robot-controlled automated manufacturing
  • High shielding
  • Outstanding isolation between outputs

Features

  • Made of Zamak, high strength
  • DC pass from the SAT connector to the input
  • Compatible with coaxial cable with sheath diameters in the 5-to-7 mm range (Ø 5...7 mm)



Televes outlets: Screw-free mounting

A class A outlet offering numerous advantages:

  • The inner conductor is connected simply by pushing, without the need for screws; still the gripping force is equivalent
  • Supports inner conductor diameters from 0.65 mm to 1.2 mm, and external cable diameters from 5 mm to 6.9 mm
  • F-connector type conic guide for easy inner conductor introduction
  • Wide margin in inner conductor length (from 5 mm to 15 mm), which makes short circuits between core and mesh difficult
  • Tilt-up, self-supporting, full-opening clamp
  • The clamp is equipped with 3 jagged rows in 9 mm for a perfect braid fixing
  • Printed circuit board perforation to make the faceplate fixing screw compatible
  • Rounded edges to prevent cuts
  • Class A shielding

Furthermore, this product range includes several engravings on the chassis:

  • CE marking
  • Numerical and logical references
  • Input and output indications
  • Cable stripping dimensions
