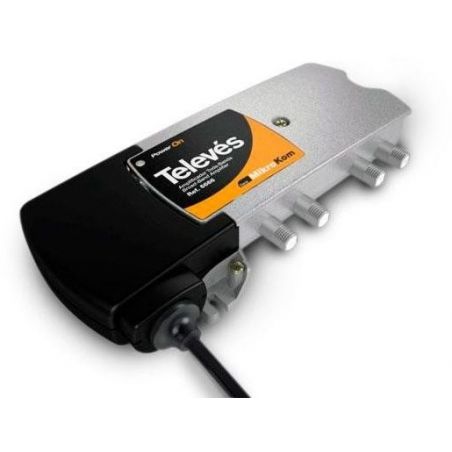

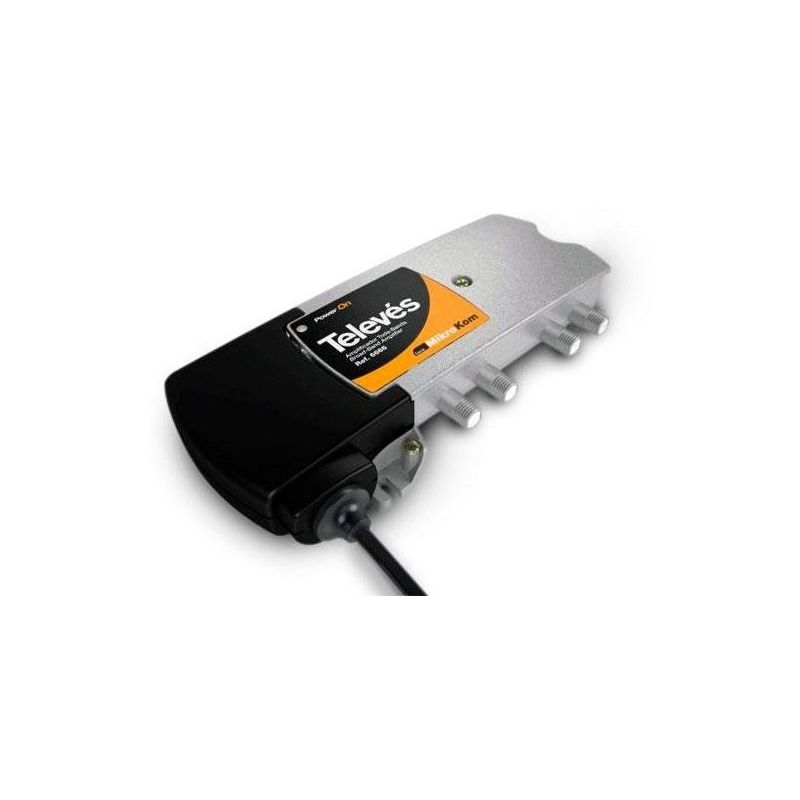

Amplifier MicroKom C3 C.RET/MATV G20/20dB Televes

Amplifier MicroKom C3 C.RET/MATV G20/24dB Televes

Amplifier microKom return channel + MATV 1e/1s F: 5-65/85-862MHz G 20/24dB Vs 118/118dBμV. Televes 534702.

€210.36

Tax included

Reference televes-534702

Brand Televes

Amplifier MicroKom C3 C.RET/MATV G20/24dB Televes

€210.36

Description
Product Details

Amplifier microKom return channel + MATV 1e/1s F: 5-65/85-862MHz G 20/24dB Vs 118/118dBμV.

Features

Ease of installation
Fully configurable
Little size.

Specifications

Reference			534702
Main channel
Frequency range		MHz	85 - 862
Gain		dB	24
Deviation nominal value			± 1
Frequency response			± 1.5
Input attenuator, steps of 2 dB			0 - 18
Interstage attenuator			0/6
Input equalizer, steps of 2 dB			0 - 18
Interstage equalizer			0/6
Noise figure			≤ 7.5
Output level	DIN45004B	dBµV	118
	CSO (42 channels 862 MHz) 60dB		100
	CTB (42 channels 862 MHz) 60dB		100
Return losses		dB	> 12
Test outputs			-20
Return channel
Frequency range		MHz	5 - 65
Gain		dB	20
Deviation nominal value			±1
Frequency response			±1
Input attenuator, steps of 2 dB			0 - 18
Interstage equalizer			0/3/6
Noise figure			≤ 6
Output level	DIN45004B	dBµV	118
	64QAM 4TP (according to KBW specifications)		115 (1.0 e-8)
Return losses		dB	> 12
Test outputs			-20
