SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 33SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 6466 AND id_lang = 1 Multimedia Step Box 5-1006MHz, TV-FM-DATA 23.5-23-22dB Televes
Multimedia Step Box 5-1006MHz, TV-FM-DATA 23.5-23-22dB Televes
search
  • Multimedia Step Box 5-1006MHz, TV-FM-DATA 23.5-23-22dB Televes

Multimedia Step Box 5-1006MHz, TV-FM-DATA 23.5-23-22dB Televes

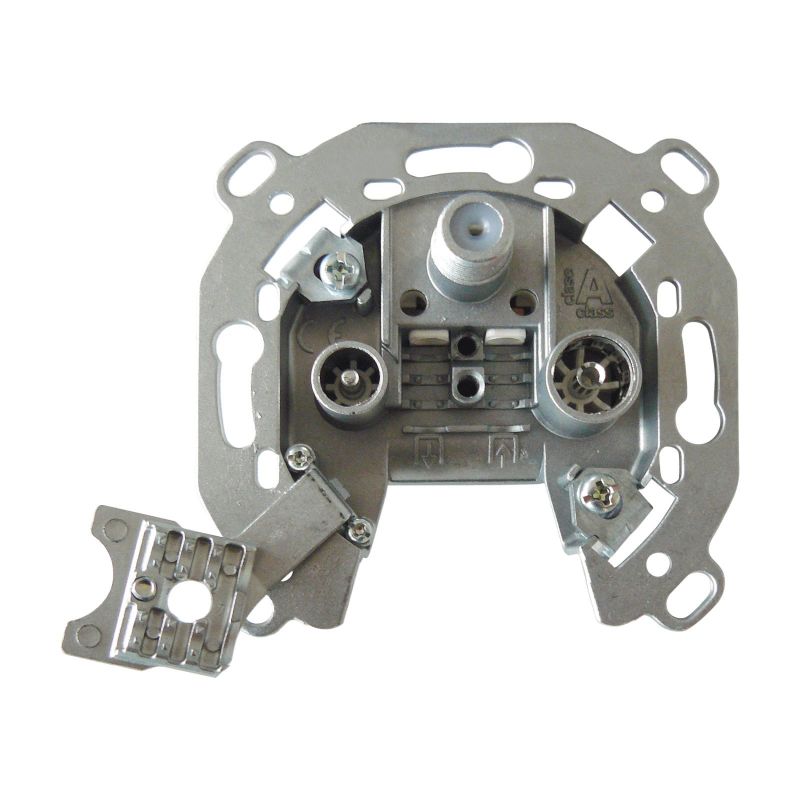

Step box with three connectors. In the lower left part a male CEI for terrestrial TV, in the lower right a female CEI for FM (radio) and in the upper center an F connector for multimedia data. It has a signal pass so it allows a serial installation of several outlets. In addition, due to its losses it is suitable to be installed on floors 6 to 12. Televes 5249

€18.05
Tax included
Reference televes-5249
Brand Televes
Quantity
Available Now

Free shipping
Multimedia Step Box 5-1006MHz, TV-FM-DATA 23.5-23-22dB Televes

Multimedia Step Box 5-1006MHz, TV-FM-DATA 23.5-23-22dB Televes

€18.05

Step box with three connectors. In the lower left part a male CEI for terrestrial TV, in the lower right a female CEI for FM (radio) and in the upper center an F connector for multimedia data.
It has a signal pass so it allows a serial installation of several outlets. In addition, due to its losses it is suitable to be installed in floors 6 to 12. Installation with terminal sockets ref. 524001.
Specially designed for operators, it is compatible with DOCSIS 3.1.

Stands out for

  • Automated robotized online manufacturing
  • High shielding
  • Great isolation between departures

Features

  • Made in Zamak, high resistance
  • Compatible with coaxial cables with cover diameter Ø 5 ... 7mm

Tomas Televes: Fixation without screw

A class A shot full of advantages:

  • The live connects by simple push, you do not have to tighten any screw, but with an equivalent clamping force
  • Supports living diameters between 0.65 to 1.2mm and outer diameters of the cable from 5 to 6.9mm
  • Conical guide, connector type "F" to introduce the live easily
  • Wide margin in the length of the live (5 to 15mm) that makes the short between live and mesh difficult
  • Tilting and self-supporting full-opening clamp
  • The clamp consists of 3 rows serrated in 9mm for a perfect fastening of the mesh
  • Perforation of the printed circuit to make compatible the fixation screw of the trims
  • Rounded edges to avoid cuts
  • Class A shielding

In addition, this product range has several engravings on the chassis:

  • CE Marking
  • Numerical and logical reference
  • Indications of inputs and outputs
  • Dimensions of cable peeling

Specifications

Type CP22
Band TV
(111-1218MHz)		 DATA
(5-1218MHz)		 R
(87-1218MHz)
Connector "CEI" Male "F" Female "CEI" Female
Anchorage method Without screws
Rejection between departures dB

Output - TV / DATA / R →> 30 (5-65 MHz) /> 30 (65-1218 MHz)
DATA - TV →> 70 (5-65 MHz) /> 50 (65-1218 MHz)
Output of passage Yes
Insertion losses dB 1±0.5
Attenuations Output: TV dB 23.5±1 - -
Output: DATA - 22±1 -
Output: R - - 23±1
DC Step (24V - 350mA) SAT → Input
