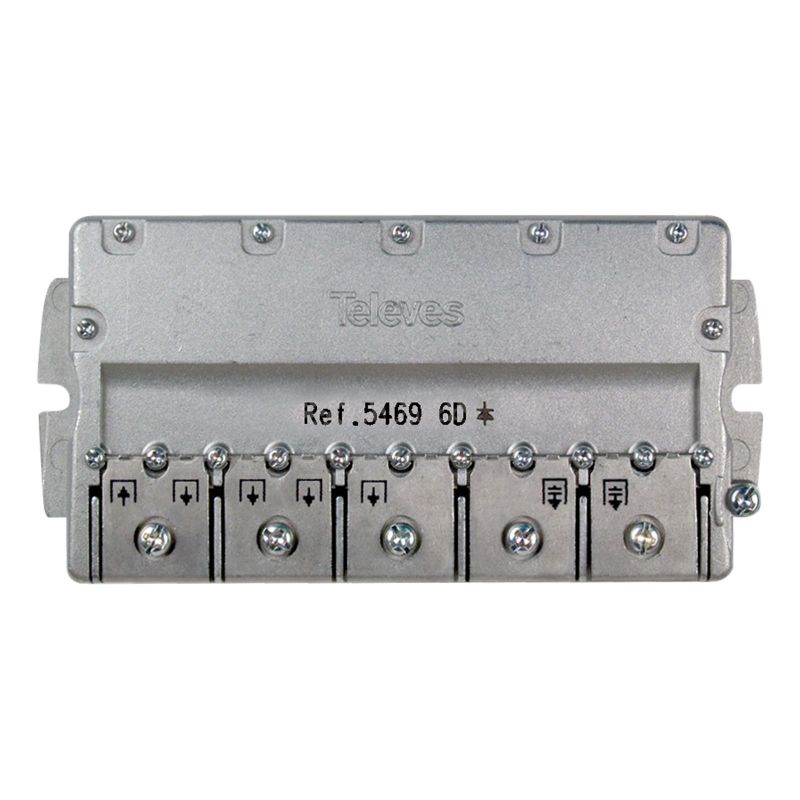

  • EasyF 6-way splitter 5-2400MHz 11/14dB Televes

EasyF 6-way splitter 5-2400MHz 11/14dB Televes

6-way Splitter for SMATV signals, with a compact design and an efficient electrical behaviour. concieved for indoor installation, it can also be used outdoors with a case (ref. 4163). Televes 5469
€23.15
Tax included
Reference televes-5469
Brand Televes
Quantity
Available in 24/48h

Free shipping
EasyF 6-way splitter 5-2400MHz 11/14dB Televes

EasyF 6-way splitter 5-2400MHz 11/14dB Televes

€23.15

6-way Splitter for SMATV signals, with a compact design and an efficient electrical behaviour.
concieved for indoor installation, it can also be used outdoors with a case (ref. 4163).

Highlights

  • EasyF connection system: easy to install, savings on mounting
  • Made of Zamak, high shielding
  • Outstanding reliability: automated manufacturing using new generation micro-components

Features

  • Improves through losses
  • Outstanding electrical behaviour: impulsive noise reduction
  • Grounding screw provided
  • DC pass from the outputs to the input



EasyF connection system: simplicity and savings

EasyF is an innovative connection concept where the inner conductor of the coaxial cable is directly inserted in the device, thus improving connection reliability. Thanks to the absence of F connectors, the chassis can be reduced and the connection of two cables secured with a a single screw.

  • Real time savings: speeding the installation is possible without the need for coaxial cable termination. Furthermore, there is no need for screwing the connectors on the device, which is sometimes difficult when there is little room
  • Connection reliability: the clamp holding the cables prevents the coaxial cable to come off
  • Cost savings: no additional connectors are required (neither F nor IEC)
  • Space optimization: inputs and outputs are always on the same side of the device to prevent coaxial cables from bending, and to make working inside cabinets and register boxes easier
  • Very easy three-step mounting: only screwing and unscrewing the covers is required to connect both cables:

1. Unscrew the device's cover to access the connection

2. Insert the previously stripped coaxial cables

3. Close the cover and screw to ensure connection

Learn more about EasyF system reliability

With EasyF, the connection between the coaxial cable and the device is carried out using an automated system for contact insertion of the inner conductor, without any soldering.

  • Always as new: the device's operating life increases when the factor of solder wearing out with time is removed
  • Failure rate reduction: usually produced as a result of cold soldering joints
  • Electromagnetic behaviour optimization: for high frequencies
  • Our commitment with environment is reinforced: pollution caused by the welding process is eliminated and production power consumption is reduced

Specifications

Referece 5469
  Nº of outputs nº 6
Frequency range MHz 5-2400
10-862 950-2400
MATV BIS SAT
Through loss S1/S2 dB 14 14
S3/S4 12 12
S5/S6 13 11
s7/s8 - -
Tap loss >28
DC Pass (max.) mA 300 (in.↔out.)
 Tension max. Vdc 40 40
 Dimensions (Larg x H x Pr) mm 108×59×15 108×59×15
 Weight gr 258 258
