Separator socket TV FM-SAT 0.6 - 1.5dB + DC with claws Televes

Separator socket TV FM-SAT 0.6 - 1.5dB + DC without claws Televes

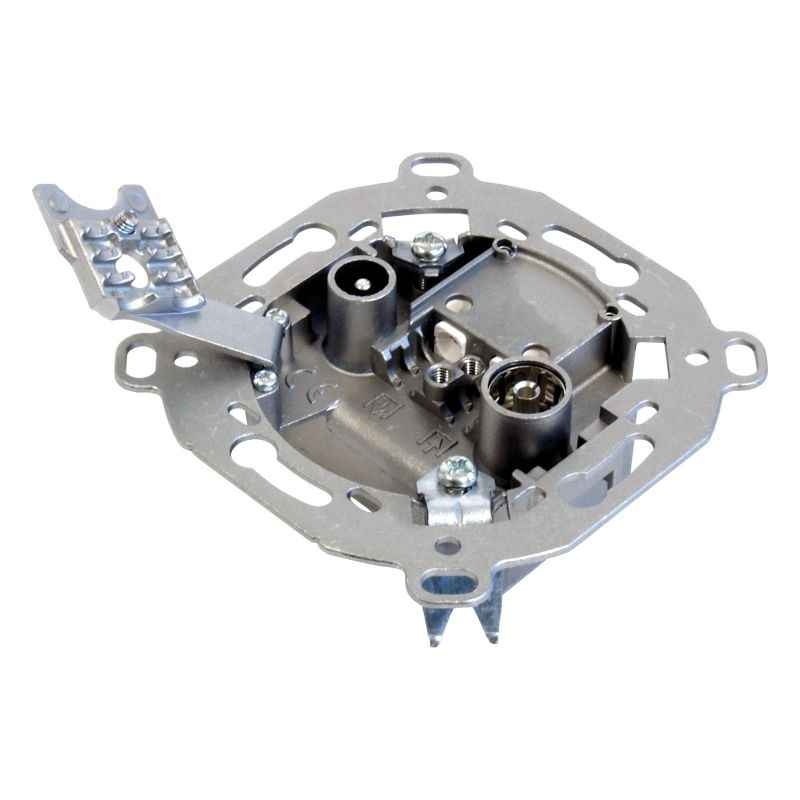

Separator terminal connector with two CEI connectors. The one on the left is a male CEI for FM (radio) and terrestrial TV and the one on the right is a female CEI for satellite TV (FI). TV/FM-SAT. 0.6 - 1.5dB + DC without claws. Televes 5276

€59.29

Tax included

Reference televes-5276

Brand Televes

Separator socket TV FM-SAT 0.6 - 1.5dB + DC without claws Televes

€59.29

Description
Product Details

Stands out for

High rejection separator filter: the SAT signal is filtered in the male CE / FM TV connector, and the terrestrial FM / TV is filtered in the female CEI satellite connector.
Automated robotized online manufacturing
High shielding
Great isolation between departures

Features

Made in Zamak, high resistance
DC step from the SAT connector to the input
Compatible with coaxial cables with cover diameter Ø 5 ... 7mm

Specifications

Type			TV-SAT
Band			MATV (5-862MHz)	SAT-FI (950-2150 / 2150-2400MHz)
Connector			“CEI” Male	“CEI” Female
Anchorage method			Without screws
Rejection between departures		dB	>8 (5-47MHz) >10 (47-862MHZ)	>8 (950-2150MHz) >15 (2150-2400MHz)
Output of passage			No
Insertion losses		dB	-
Attenuations	Output: R/TV	dB	-	-
	Output: SAT		-	1.5
DC Step (24V - 350mA)			SAT → Input
