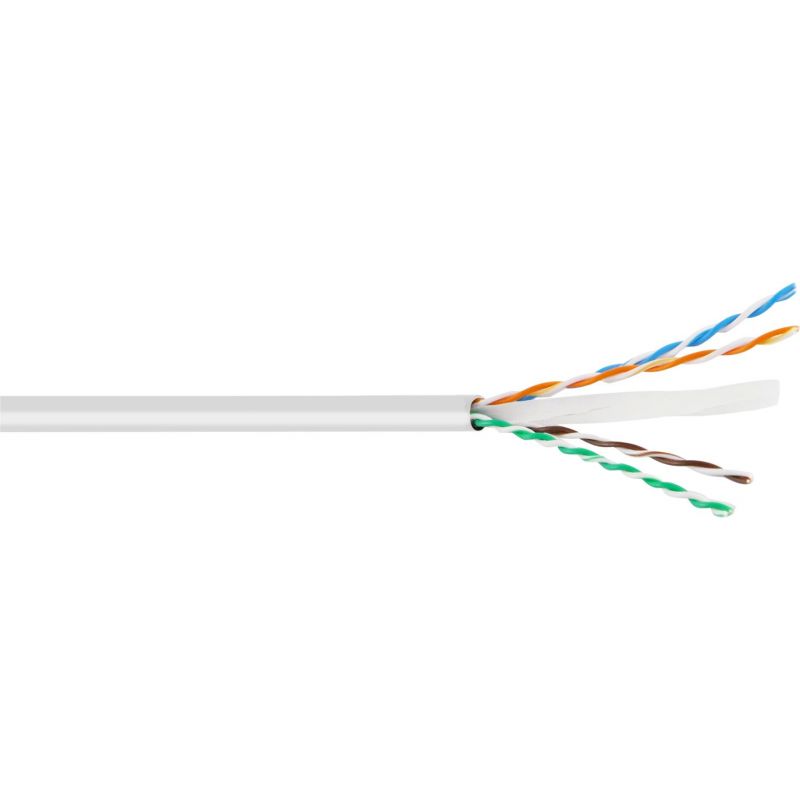

Data cable U/UTP CAT-6 Fca PE White 305m Televes

Category-6 and Fca Euroclass data cable, U/UTP type (Unfoiled), with copper conductor and PE sheath, white colour (RAL 9010). Supplied in a 305m dispenser box. Televes 212201

€0.81
Tax included
Reference televes-212201
Brand Televes
Quantity
Available in 24/48h

Free shipping
Data cable U/UTP CAT-6 Fca PE White 305m Televes

Data cable U/UTP CAT-6 Fca PE White 305m Televes

€0.81

Category-6 and Fca Euroclass data cable, U/UTP type (Unfoiled), with copper conductor and PE sheath, white colour (RAL 9010).

Supplied in a 305m dispenser box.

Highlights

  • U/UTP Unfoiled UTP Cable
  • Solid copper inner conductor (23AWG)

Features

  • PE (Polyethylene) copper conductor insulation, 0.95mm thick
  • PE (Polyethylene) outer sheath, 0.55mm thick and 6.2mm diameter
  • 72% nominal speed



Data cable category Cat-6 complies with the standard for Gigabit Ethernet and it is backwards compatible, with the standards of the inferior categories (Cat-5/5e and Cat-3). Category 6 includes characteristics and specifications to avoid crosstalk and noise. Achieves transmission frequencies of up to 250 MHz (in each pair) and 1 Gbps of throughput. This type of data cable can be used in 10BASE-T, 100BASE-T and 1000BASE-T (Gigabit Ethernet) compliant systems.

The main features of Televes’ Cat-6 cables are:

  • Crucifix type padding
  • Includes rip cord to make it easier to strip the cable
  • Nominal impedance of 100 ohms
  • Maximum resistance per conductor below 117 ohms/Km

Specifications

Type U/UTP
EuroClass Fca
Class CAT 6
Conductor Material Solid copper
Ø (mm) 0.55 ± 0.02
Conductor type AWG 23
Conductor isolation Material Polyehtylene
Ø (mm) 0.95
Filler “Crucifix” Yes
Outer sheath Material Polyehtylene
Ø (mm) 6.2 ± 0.3
Thickness (mm) 0.55 ± 0.05
Color White
Rip cord Yes
Reaction to fire CPR Fca
Nominal impedance Ω 100 ± 15
Max. conductor resistance Ω/Km < 117
Nominal velocity % 72
Working voltage V 300

FREQUENCY ATTENUATION NEXT PS-NEXT ELFEXT PS-ELFEXT RETURN LOSS
(MHz) (dB/100m)
0.772 1.8 76 74 70 67 -
1 2 74.3 72.3 67.8 64.8 20
8 5.4 60.8 58.8 49.7 46.7 24.5
10 6 59.3 57.3 47.8 44.8 25
16 7.6 56.3 54.3 43.7 40.7 25
20 8.5 54.8 52.8 41.7 38.7 25
25 9.6 53.3 51.3 39.8 36.8 24.3
31.25 10.7 51.9 49.9 37.9 34.9 23.6
62.5 15.5 47.4 45.4 31.8 28.8 21.5
100 19.9 44.3 42.3 27.8 24.8 20.1
125 22.4 42.8 40.8 25.9 22.9 19.4
200 29.2 39.8 37.8 21.7 18.7 18
250 33 38.3 36.3 19.8 16.8 17.3
