  • Central Multibanda blindada IKUSI NBS-895 LTE 5 entradas 1 salida

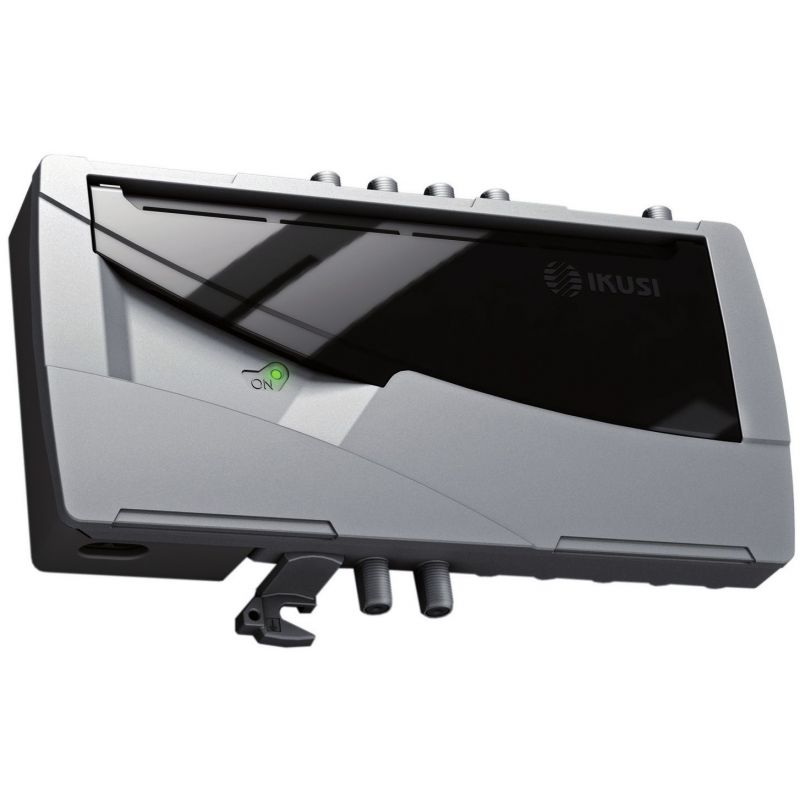

Ikusi NBS-895: Armored Multiband Amplifier Center 5 input 1 output 42dB

Multiband terrestrial and satellite amplifier center 5 input and 1 output. BI/FM-BIII/DAB-2xUHF (118 dBµV)-FI SAT (120 dBµV). High-power broadband stations for amplification of terrestrial signals in small collective installations.

€220.58
Tax included
Reference ikusi-3534
Brand Ikusi
Quantity
Out-of-Stock

Free shipping

You might also like

This model is replaced by the Ikusi NBS-895-C48

Ground and Satellite Amplification Center 1 entrance and 1 exit. VHF / UHF Gain of 42 dB and Output level of 118 dBμV. High power broadband power stations, for amplification of terrestrial signals in small collective installations.

Features

  • High power broadband power stations, for amplification of terrestrial and satellite signals in small collective installations.
  • Inter-stage input attenuators.
  • Power supply by switched source, in extractable box.
  • Adjustment of slope adjustment by insertion of bridge or potentiometer.
  • For all models, in the UHF inputs, there will be a system (through insertion of a small bridge) that allows switching the higher frequency of UHF between 862 MHz (current limit) and 790 MHz (new limit of the "digital dividend" ).
  • Zamak box with protective cover of the adjustment elements. Connectors F.
  • Interior assembly and wall fixing.

Specifications

MODEL NBS-895
REF. 3534
Inputs 5
BI/FM-BIII/DAB-2xUHF-FI SAT
Frequency band MHz BI/FM: 45-112
BIII/DAB: 174-240
2xUHF: 470-862 / 470-790 *
FI-SAT: 950-2150
Gain dB BI/FM: 42
BIII/DAB: 42
2xUHF: 45
FI-SAT: 40
Gain regulation dB 0 - 18
Slope adjustment dB FI-SAT : 0 / 6
Band Ripple dB BI/FM: ±2
BIII/DAB: ±2
2xUHF: ±1,5
FI-SAT: ±2
Outputs 1
Output test dB -30
Output level dBμV TV: 118
FI-SAT: 120 (EN 50083-3 IMD -35 dB )
Noise figure dB BI/FM: 7
BIII/DAB: 7
2xUHF: 8
FI-SAT: 9
Losses return in / out dB TV: 10
FI-SAT: 6
Mains voltage / current preamp   UHF2: 12-24 V / 100 mA
FI SAT: 13-18V / 100 mA
LNB: 0/22 kHz
Power supply VAC 240
(+10% -15%)
Consumption W 16
Dimensions (width x height x depth) mm 230 x 145 x 43
