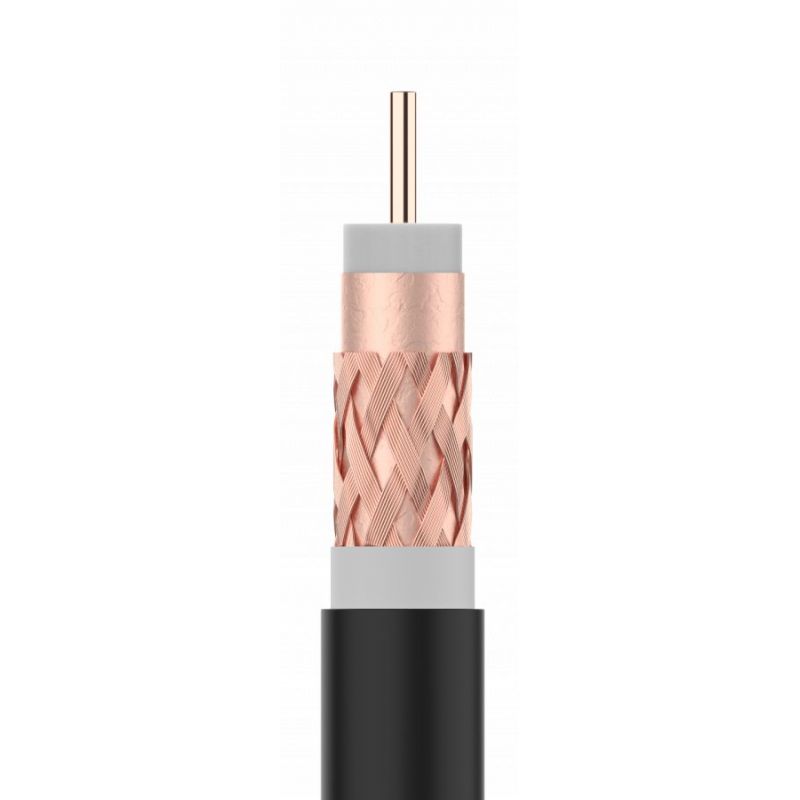

Coil of cardboard 100m coaxial cable T100plus Eca/A 16VRtC Black Televes

Coaxial cable with live and mesh made of copper (Cu / Cu) with excellent braiding coverage (73%). It is double-shielded, and incorporates an anti-migratory sheet. A 16VRtC cable, PVC cover.

Stands out for

• Internal conductor made of copper-plated steel and aluminum mesh
• Class A shielding
• Euroclass Eca

Features

• Outer PVC cover in Black
• Characteristic impedance of 75 ohm
• Cardboard coil 100m.

Double-shielded Class A coaxial cable

With 2 shielding layers, these cables provide an outstanding shielding thanks to a high-coverage braid.

They belong in EN 50117 standard Class A, according to their structural properties:

• For 5 MHz - 30 MHz => TI < 5 mΩ/m
• For 5 MHz - 1000 MHz => SA > 85 dB
• For 1000 MHz - 2000 MHz => SA > 75 dB
• For 2000 MHz - 3000 MHz => SA > 65 dB

Where the transfer impedance (TI) defines how effective the shielding is at low frequencies, while the shielding attenuation (SA) defines it in the 30 MHz-to-3000 MHz range.

Specifications
