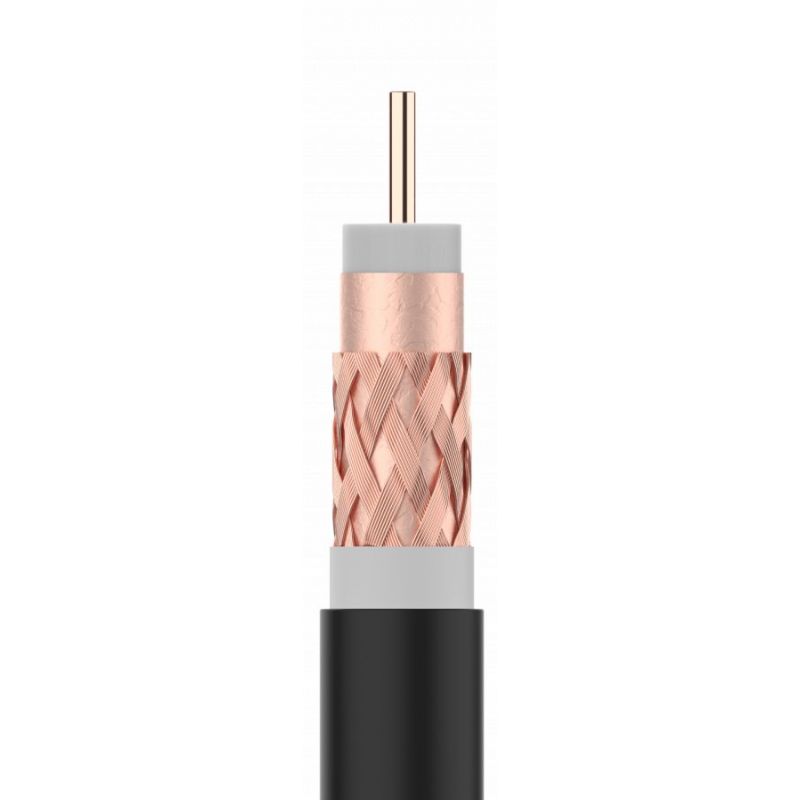

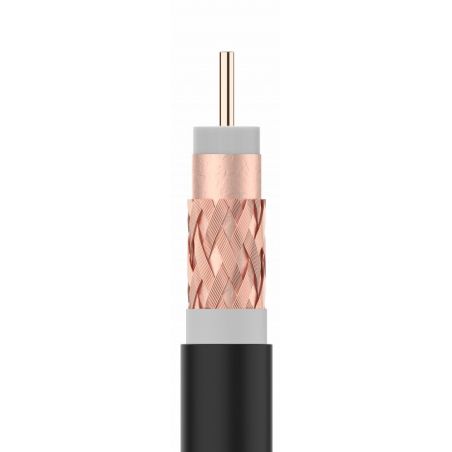

Coaxial cable with live and mesh made of copper (Cu / Cu) with excellent braiding coverage (73%). It is double-shielded, and incorporates an anti-migratory sheet. A 16PRtC cable, PE cover.

Stands out for

• Conductors made of copper
• Class A shielding
• Euroclass Fca
• Anti-migratory sheet that prevents the migration of the additives d cover and moisture inside the cable, thus preventing the deterioration of its characteristics

Features

• Outer PE cover in black
• Characteristic impedance of 75 ohm
• 250m wood coil

Double layer coaxial cable and Class A

With 2 layers of armor, these cables offer good screening thanks to a large coverage mesh.

Their constructive properties make them Class A, complying with EN 50117:

• At 5 - 30 MHz => TI <5 ​​mΩ / m
• At 5 - 1000 MHz => SA> 85 dB
• At 1000 - 2000 MHz => SA> 75 dB
• At 2000 - 3000 MHz => SA> 65 dB
• Where, the transfer impedance (TI) defines the effectiveness of the shielding at low frequencies, and the shielding attenuation (SA) defines it between 30 and 3000MHz.
