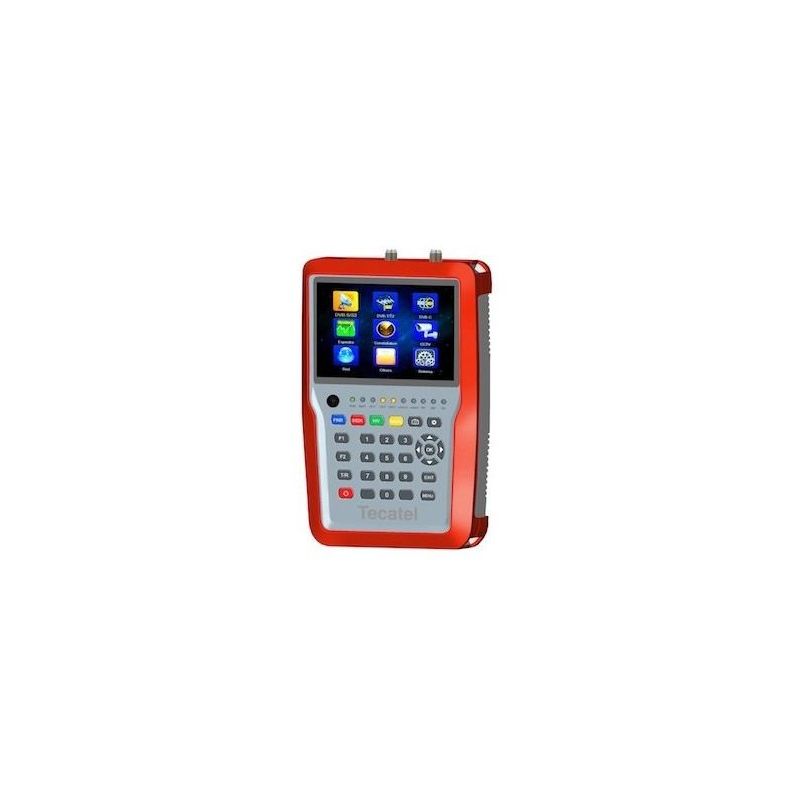

Field Meter Tecatel M-TD2 H265 DVB-S2/T2/C2 IPTV CCTV

M-TD2 field meter for satellite, terrestrial, cable, data and CCTV. It shows a constellation and real spectrum, comes with a signal indicator MER and BER and IPTV function. Your software can be updated through USB.

€706.16
Tax included
Reference tecatel-m-td2
Brand Tecatel
Quantity
Out-of-Stock

Free shipping

This model is replaced by M-TD24K

Field meter M-TD2 for satellite, terrestrial, cable, data and CCTV. It shows a constellation and real spectrum, comes with a signal indicator MER and BER and IPTV function. Your software can be updated through USB.

Features

  • HD DVB-S/S2 / DVB-T/T2 and DVB-C meter.
  • High definition TFT-LCD screen.
  • Supported network (WIFI/Cable).
  • CCTV monitoring supported (Analog/AHD).
  • USB port for software update.
  • Selectable antenna power output.
  • Multi-language menu
  • Video input for receiver, camera, etc.
  • It shows real spectrum and constellation.
  • Signal indicator MER and BER.
  • IPTV function.

Specifications

Frequency range Input DVB-S/S2 950-2150 MHz
DVB-T/T2
DVB-C 110-868 MHz
Video Decoding H.265 2K/HEVC/AVC/AVS+,AVC/H.264,MPEG-2,MPEG- 4 PART2,DIVX,XVID,MPEG-1/H.261/H.263.AVS
Resolution 2160P,1080P,1080I,720P,576P,576I
Display 5” TFT- LCD
Input impedance 75W
External power 14V/3A
Energy consumption Max 25W
LNB voltage 13/18V – 0/22KHz
LNB consumption 500 mA
Prior feed voltage RF 5V / 12V / 24V
RF power consumption 50 mA
IPTV function UDP Multicast
CCTV Resolution Cameras: up to 1080p / Recorders: up to 576i
Demodulator DVB-S/S2 QPSK ( 2Mbps ~ 45Mbps ) / 8 PSK
DVB-T/T2 / DVB-C QPSK / 16QAM / 32QAM / 64QAM / 128QAM / 256QAM
Dimensions 210 x 130 x 48 (mm)
Weight 0.75 Kg.
