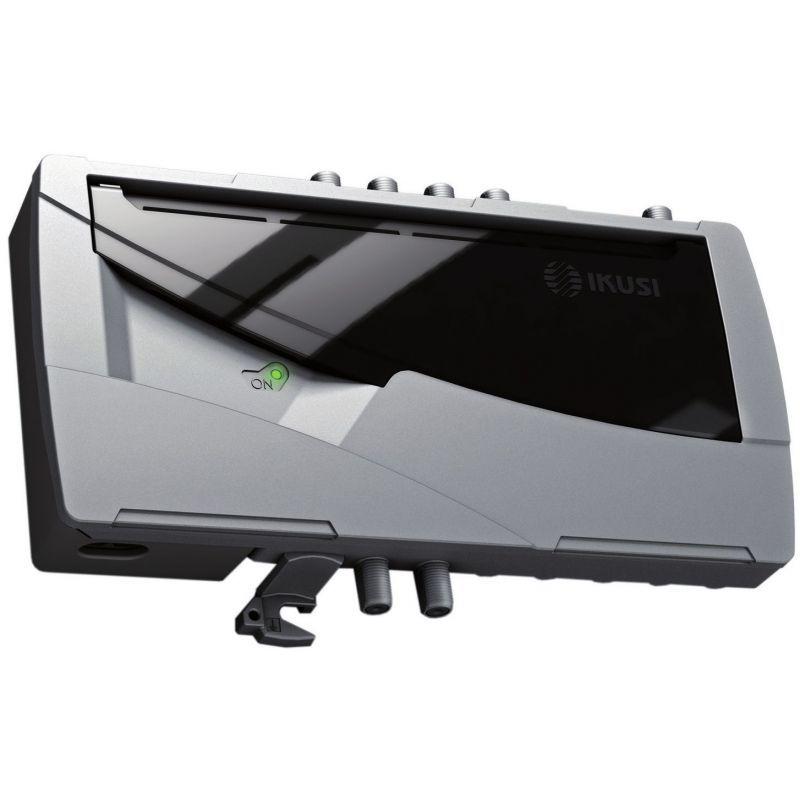

Ikusi NBS-695: Shielded multi-band amplifier 5 inputs 1 output 36 dB

Central Terrestrial Amplification and Satellite 5 inputs and 1 output. BI / FM-BIII / DAB-2xUHF (112dBμV) -FI SAT (114dBμV). Medium power broadband power stations, for amplification of terrestrial signals in small collective installations.

€176.06
Tax included
Reference ikusi-3530
Brand Ikusi
Quantity
Out-of-Stock

Free shipping

Multiband terrestrial and satellite amplifier center 5 input and 1 output. BI/FM-BIII/DAB-2xUHF (112dBµV)-FI SAT (114dBµV). Medium-power broadband stations for amplification of terrestrial signals in small collective installations.

Features

  • Centrales banda ancha de alta potencia, para amplificación de señales terrestres y satélite en pequeñas instalaciones colectivas.
  • Atenuadores de entrada inter-etapas.
  • Alimentación mediante fuente conmutada, en caja extraible.
  • Ajuste de regulación de pendiente mediante inserción de puente o potenciómetro.
  • Para todos los modelos, en las entradas de UHF, se dispondrá de un sistema (mediante inserción de un pequeño puente) que permita conmutar la frecuencia superior de UHF entre 862 MHz (límite actual) y 790 MHz (nuevo límite del “dividendo digital”).
  • Caja de zamak con tapa protectora de los elementos de ajuste. Conectores F.
  • Montaje interior y fijación mural.

Specifications

MODELO NBS-695
REF. 3530
Entradas 5
BI/FM-BIII/DAB-2xUHF-FI SAT
Banda de frecuencias MHz BI/FM: 45-112
BIII/DAB: 174-240
2xUHF: 470-862 / 470-790 *
FI-SAT: 950-2150
Ganancia dB BI/FM: 36
BIII/DAB: 36
2xUHF: 39
FI-SAT: 34
Regulación ganancia dB 0 - 18
Regulación de pendiente dB FI-SAT : 0 / 6
Ondulación en banda dB BI/FM: ±2
BIII/DAB: ±2
2xUHF: ±1,5
FI-SAT: ±2
Salidas 1
Test de salida dB -30
Nivel de salida dBμV TV: 112
FI-SAT: 114 (EN 50083-3 IMD -35 dB )
Figura de ruido dB BI/FM: 7
BIII/DAB: 7
2xUHF: 8
FI-SAT: 9
Pérdidas retorno entrada/salida dB TV: 10
FI-SAT: 6
Tensión/corriente preamplificador mástil   UHF2: 12-24 V / 100 mA
FI SAT: 13-18V / 100 mA
LNB: 0/22 kHz
Alimentación VAC 240
(+10% -15%)
Consumo W 11
Dimensiones (ancho x alto x prof.) mm 230 x 145 x 45
