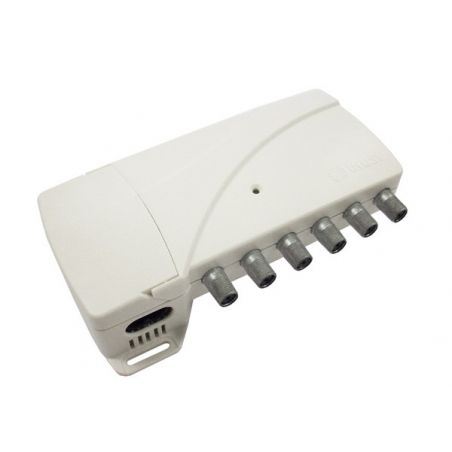

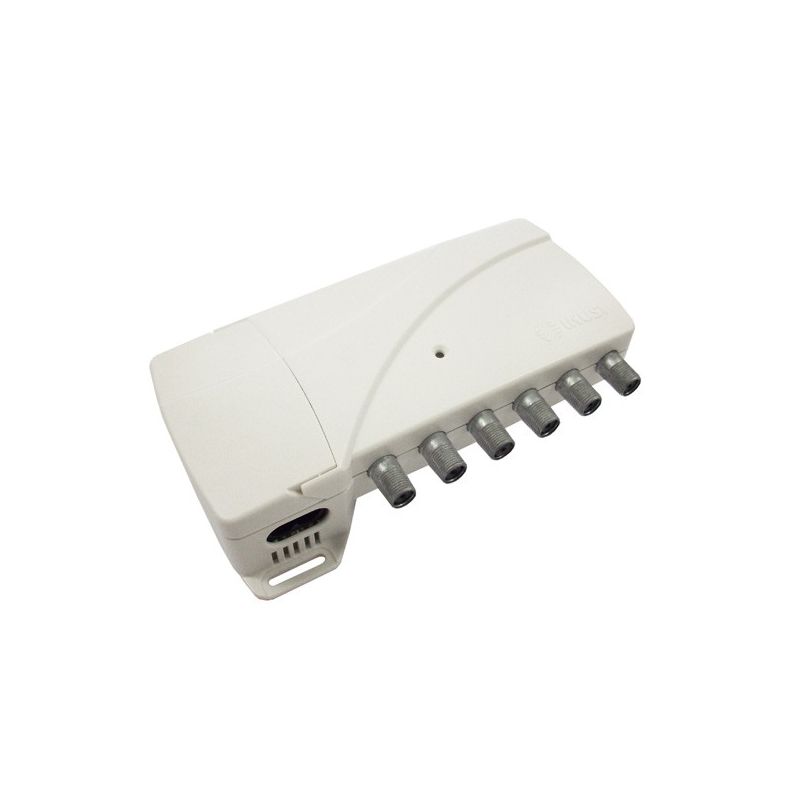

Ground Amplification Station 4 inputs. BI-FM-BIII / FM-UHF. 106 dBμV High power broadband power stations, for amplification of terrestrial and satellite signals in small collective installations.

Features

• Low power broadband power stations, for amplification of terrestrial signals in small installations.
• Variable input attenuators.
• For all models, in the UHF inputs, there will be a system (through insertion of a small bridge) that allows switching the higher frequency of UHF between 862 MHz (current limit) and 790 MHz (new limit of the "digital dividend" ).
• Zamak chassis housed in a plastic box.
• Connectors F. Internal mounting and wall mounting.
• The two UHF inputs channels 21-60 / 69 selectable by means of a bridge
• High level of output
• Current injection for mast preamps
• Test of exit for verifications without disconnecting the service

Specifications

• 4 entries.
• 1 exit
• Frequency band: 45-790 MHz.
• Gain:

  • 31 dB for the FM band.
  • 31 dB for the DAB band.
  • 36 dB for the UHF band.
• Output level:

  • 96dBuV on the TV band.
• Noise figure:

  • 7 dB on the FM band.
  • 7 dB in the DAB band.
  • 8 dB in the UHF band.
• 240 VAC power.
• Consumption of 16 W.
