  • Antenna Omninova Boss LTE790 1st Digital Dividend Televes

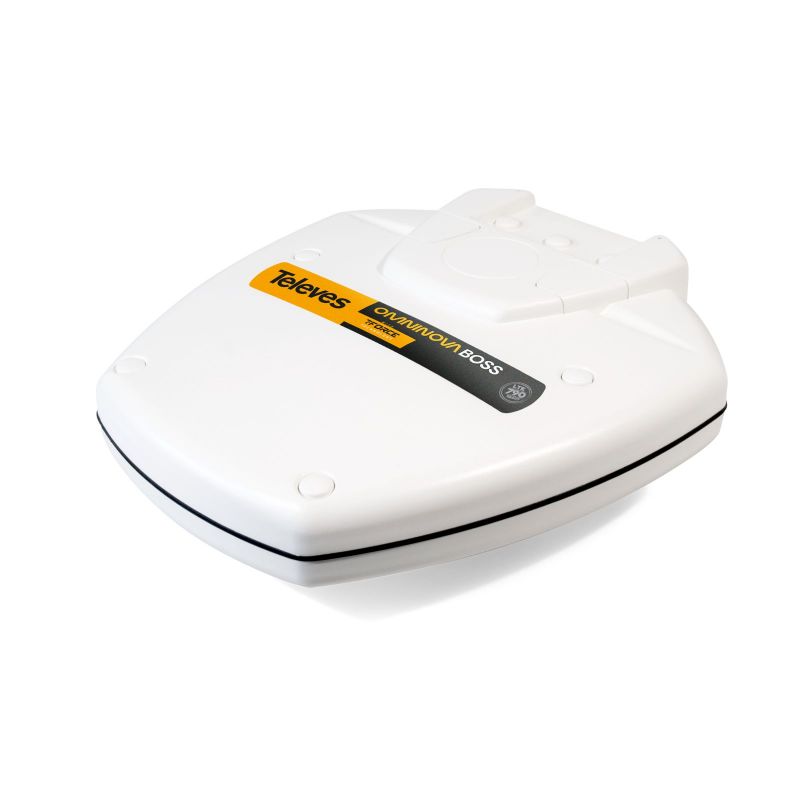

Antenna Omninova Boss LTE790 BOSSTech Televes

Antenna with reception capacity in 360º (omnidirectional), so that reorientation is not necessary when changing locations. Ideal for receiving DTT in mobile facilities in general (boats, motor homes ...) that make short stays.

This product is replaced by the Antenna Omninova Boss LTE700 BOSSTech BI/FM/BIII/UHF(C21-48) Televes

€221.89
Tax included
Reference televes-144442
Brand Televes
Quantity
Available in 24/48h

Free shipping

Antenna Omninova Boss LTE790 BOSSTech Televes

€221.89

OMNINOVA BOSS (LTE790, 1st Digital Dividend)

Omnidirectional intelligent antenna that does not require pointing

Antenna with a 360º reception capability (omnidirectional), therefore, there is no need to point again the antenna when changing location. It is perfect for DTT reception in moving facilities (ships, campers...) for short stays.

The BOSSTech system automatically controls the level of the received signal (either very high or very low) to always provide optimal output level. The new design using TForce technology makes this intelligent device even more versatile.


Provided with a full installation kit consisting of:
  • 12V PicoKom power supply unit (Ref. 579401)
  • Current inyector for battery connection (Ref. 7450)
  • Straight bracket for antenna installation
  • F connector
  • Screws with assembly wrench for mast mounting

Highlights

  • High dynamic range: It allows high-quality TV reception in a wide variety of critical situations, from areas where signals are very weak to installations with high reception levels
  • DTT coverage area enhancement
  • Very high gain
  • A more stable reception: supports signal variations or fading without any impact on the TV installation

Features

  • Robust versatile structure:
    • Weather resistant: The radome is highly resistant to salinity, humidity and other adverse weather conditions (IP 53).
    • The base has a tube compatible with masts up to 30mm diameter.
    • The base was designed to protect and hide the coaxial cable inside the mast or the bracket.
  • 360º reception for multiple bands: Pointing is not required: BI, FM, BIII, and UHF.
  • Low power consumption in intelligent mode
  • LTE Ready: designed to optimize LTE band rejection (cell phone interference)through electronic filtering
  • Two operation modes:
    • In intelligent mode (with antenna feeding), BOSS provides automatic control to correct signal fluctuations and maintain optimal output signal level
    • In passive mode (without power supply), the signal goes through
  • Quick and easy mounting. Furthermore, they can bebought as a kit, including all the accessories required for installation.



NOVA Series:

A special antenna series to be installed in restrictive locations.

  • Known for their pleasing low-impact visual design and ideal for installations where good aesthetics are key.
  • Intelligent antennas include our BOSS system to provide the best output level for a exceptional reception quality.
  • LTE ready: they integrate an LTE electronic filter to remove cell phone interference
  • Built with materials that are highly resistant to salt air , humidity and other adverse climatic elements, with a protection index of 53.
  • Low power consumption and easy mounting. Furthermore, they can be purchased as full kits including all the accessories required for their installation.
  • Manufactured in Europe, our products undergo the most stringent quality controls, providing high reliability.

Specifications

 Working band BI FM BIII UHF
 Frequency range LTE790 MHz 54 - 88 88 - 108 174 - 230 470 - 790
 Polarisation Horizontal
 BOSS Mode OFF ON OFF ON OFF ON OFF ON
 Maximum gain dBi -10 17* -4 16* -3 25* -4 25*
 Output level dBμV --- Auto* --- Auto* --- Auto* --- Auto*
 Powering Vdc --- 12-24 --- 12-24 --- 12-24 --- 12-24
 Maximum current mA --- 95 --- 95 --- 95 --- 95
 Protection index IP 53
 Wind load N 74.88 (@ 130 km/h)
102.96 (@ 150 km/h)

* Gain varies automatically based on the output level.
