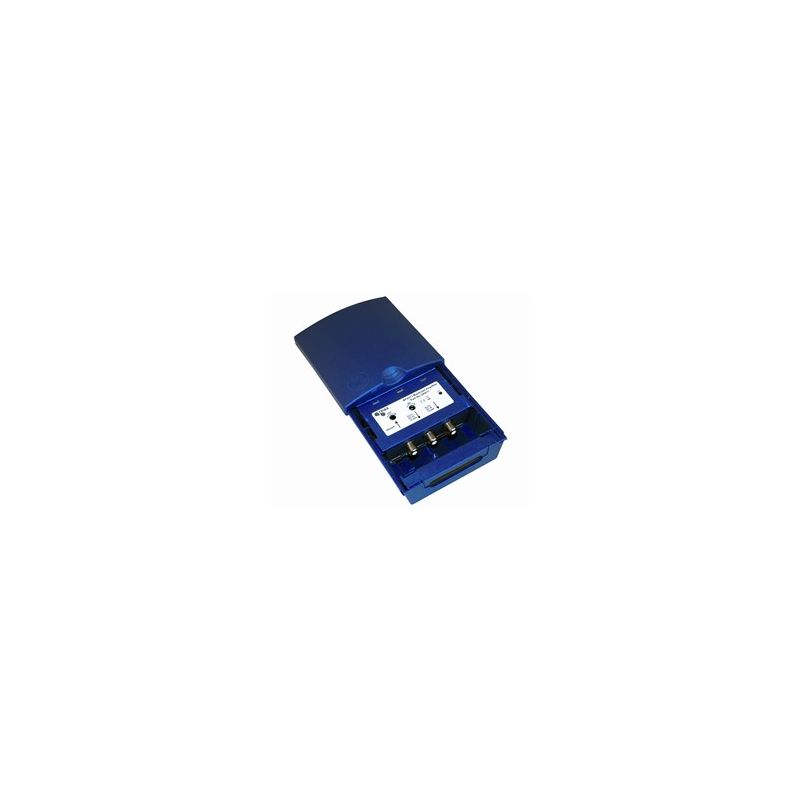

Mast Amplifier TDT UHF/DAB MFA 611 2 outputs LTE Triax
Triax MFA La nouvelle gamme d'amplificateurs de mât est prête à couper les canaux 61-69, puisque la Commission européenne a décidé d'attribuer de 790 à 862 MHz, la bande de fréquences (canaux 61-69) aux services de communications mobiles.
€29.04
Tax included
Reference
triax-340611
Brand
Triax
Triax MFA the new range of mast amplifiers are prepared to cut channels 61-69, since the European Commission has decided to assign from 790 to 862 MHz, frequency band (channels 61-69) to mobile communications services.
Features
- Mast amplifier 2 inputs: FM / BIII + UHF.
- Gain: FM (24dB), BIII + UHF (25 dB).
- Output level: 108 dBμV.
- LTE protection.
- F female connectors.
- Waterproof housing.
- RF armored and CE approved (EN 50083).
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663406117 |
| CHARACTERISTICS | |
| Type. | Multiband mast amplifier |
| Max. Output level @ -60 dB IMD | 103 dBµV |
| FREQUENCY | |
| Input 1 - frequency | 470...790 / 170...230 MHz |
| Input 1 - band | BIII(DAB)+UHF |
| Input 1 - channels | 21...60 / 5...12 |
| LTE protection | 800 |
| GAIN | |
| Input 1 - gain | 10...25 / 15...30 dB |
| Input 1 - noise figure | 3.5 dB |
| RETURN LOSS | |
| Return Loss | 10/8 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| LED indicator | Yes - green |
| DC Operating voltage | 12...24 VDC |
| DC Current consumption | 55 mA |
| CONNECTORS | |
| Number of inputs | 1 |
| Number of outputs | 2 |
| Connector Type | F-female |
| MECHANICAL | |
| Product Height | 115 mm |
| Product Depth | 60 mm |
| Product Width | 107 mm |
| Colour | RAL 7016 |
| Packing QTY | 1 |
| Packaging Height | 0.060 m |
| Packaging Width | 0.120 m |
| Packaging Depth | 0.110 m |
| Packaging Volume | 0.001 m3 |
| Net Weight | 0.230 kg |
| Tara Weight | 0.025 kg |
| Total Weight | 0.255 kg |
