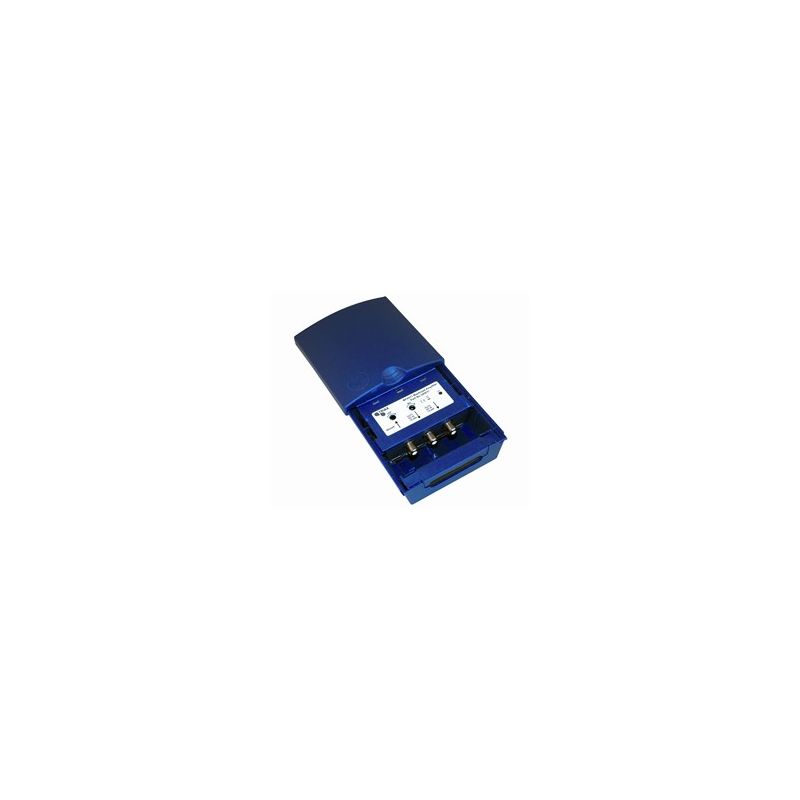

MF Amplifier DTT UHF / DAB + FM Triax MFA 621 1 LTE output
Triax MFA the new range of mast amplifiers are ready to cut channels 61-69, since the European Commission has decided to assign from 790 to 862 MHz, frequency band (channels 61-69) to mobile communications services.
€36.00
Tax included
Reference
triax-340621
Brand
Triax
Triax MFA the new range of mast amplifiers are ready to cut channels 61-69, since the European Commission has decided to assign from 790 to 862 MHz, frequency band (channels 61-69) to mobile communications services.
Features
- LTE protected
- F-connectors on all in- and outputs
- 4-teminal waterproof masthousing
- RF shielded & CE approved (EN 50083)
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663406216 |
| CHARACTERISTICS | |
| Type | Multiband mast amplifier |
| Max. Output level @ -60 dB IMD | 103 dBµV |
| FREQUENCY | |
| Input 1 - band | BIII(DAB)+UHF |
| Input 1 - channels | 5...12 / 21...60 |
| Input 1 - frequency | 170...230 / 470...790 MHz |
| Input 2 - band | BII |
| Input 2 - channels | FM |
| Input 2 - frequency | 87...108 MHz |
| LTE protection | 800 |
| GAIN | |
| Input 1 - gain | 20...35 dB |
| Input 1 - noise figure | 2.5 dB |
| Input 2 - gain | 5...15 dB |
| Input 2 - noise figure | 2.5 dB |
| RETURN LOSS | |
| Return Loss | 10/8 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| DC Operating voltage | 12...24 VDC |
| LED indicator | Yes - green |
| DC Current consumption | 55 mA |
| CONNECTORS | |
| Connector Type | F-female |
| Number of outputs | 1 |
| MECHANICAL | |
| Colour | RAL 7016 |
| Product Depth | 60 mm |
| Packaging Depth | 0,140 m |
| Packaging Height | 0,060 m |
| Total Weight | 0,290 kg |
| Packaging Width | 0,120 m |
| Net Weight | 0,290 kg |
| Packing QTY | 1 |
| Packaging Volume | 0,001 m3 |
| Product Width | 117 mm |
| Product Height | 115 mm |
