  • Intermediate section reinforced Hot galvanized 3m turret series 450 White Televes

Intermediate section reinforced Hot galvanized 3m turret series 450 White Televes

Seção intermediária de 3m para a formação de uma torre da série 450. As seções reforçadas proporcionam maior robustez devido ao fato de serem construídas com um diâmetro maior e tubo mais espesso, para que cenários mais complicados possam ser resolvidos. White colour (RAL 9002). Televes 313203

€1,226.79
Tax included
Reference televes-313203
Brand Televes
Quantity
Available in 24/48h

Free shipping
Intermediate section reinforced Hot galvanized 3m turret series 450 White Televes

Intermediate section reinforced Hot galvanized 3m turret series 450 White Televes

€1,226.79

This product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here

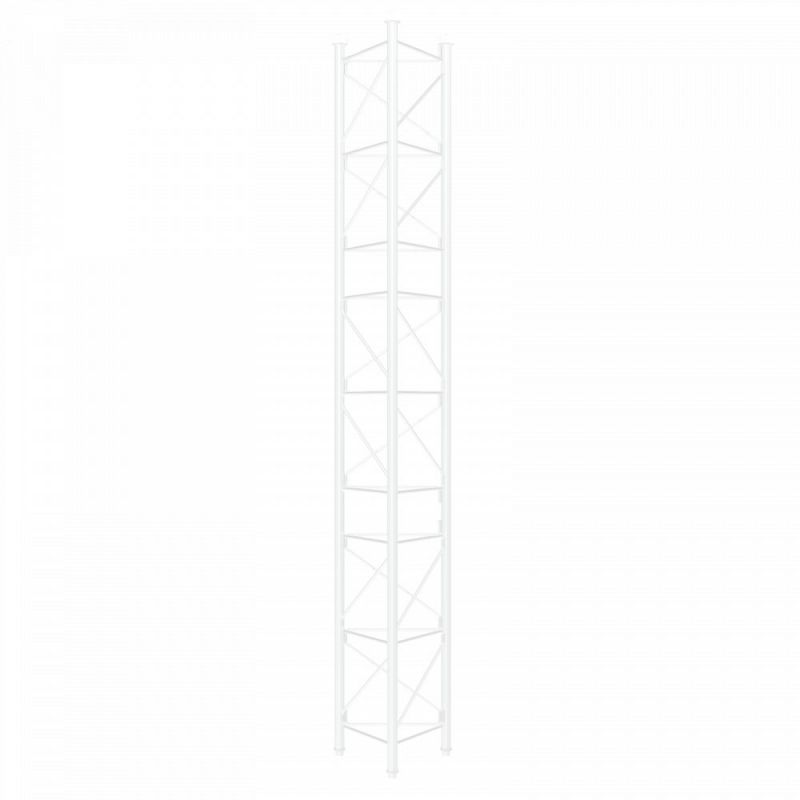

Intermediate section of 3m for the formation of a tower of the 450 series.
The reinforced sections provide greater robustness to be built with larger diameter tube and thickness, so that more complicated scenarios can be solved.

Highlights

  • Anchoring system with union nuts
  • Fully automated soldering
  • 450 tower maximum height: 90m (as per calculation conditions)

Features

  • The hot-dip galvanizing surface treatment provides enhanced durability in adverse corrosion conditions
  • Zinc coating + colour paint: oven-lacquering with polyester electrostatic powder

Specifications

Reference 313203
Description Intermediate section reinforced pylon MR450. White color
Fabrication (1) Steel ST 37-2 Ø 40 ext. x 3 mm thick.
Re min. 235 N / mm2 - Rn min. 360/510 N / mm2
(2) Steel S 275 JR Ø 12 mm
Re min. 275 N / mm2 - Rn min. 410/560 N / mm2
Finish Printed + baking lacquered with powder Electrostatic polyester 60-80 μm White colour (RAL 9002)
Weight 40.8 Kg
Surface facing the wind 0.517 m2 x 1.2 coef. = 0.621 m2
