SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 33SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 6652 AND id_lang = 1 Lower section swingarm Galvanized hot 3m turret series 550 Red Televes
Lower section swingarm Galvanized hot 3m turret series 550 Red Televes
search
  • Lower section swingarm Galvanized hot 3m turret series 550 Red Televes

Lower section swingarm Galvanized hot 3m turret series 550 Red Televes

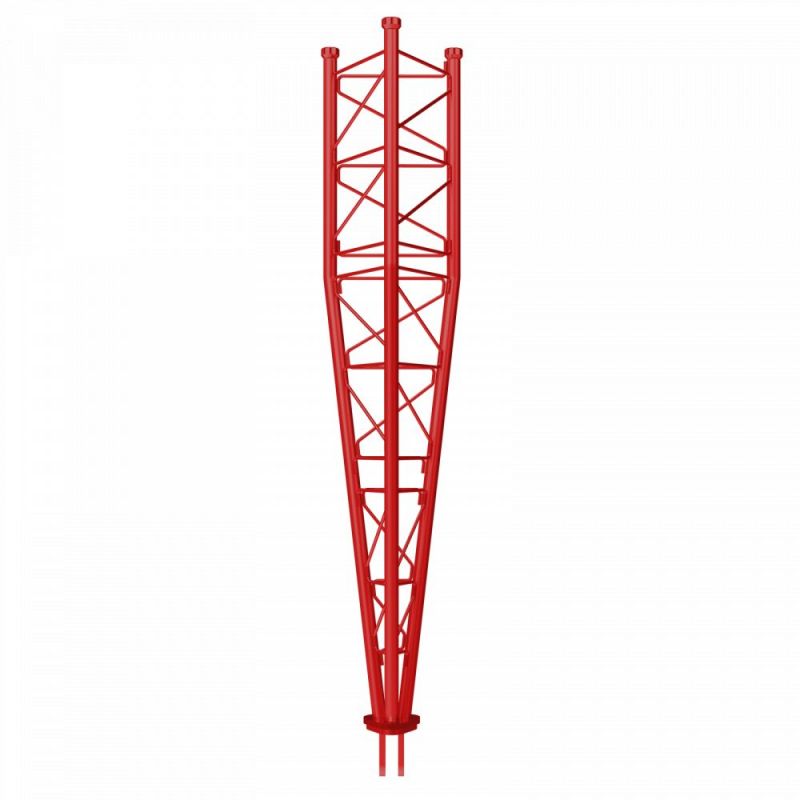

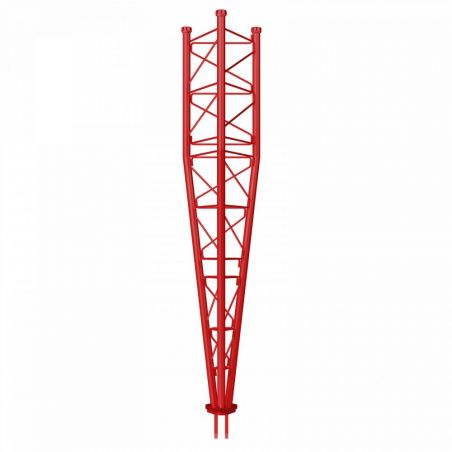

Lower section of 3m for the formation of a tower of the 550 series. The section is painted in red (RAL 3020). Being a swinging section, requires the installation of winds. Maximum height of the Tower 550: 140m (according to calculation conditions). The hot galvanized surface treatment offers greater durability in adverse corrosion conditions. Televes 313902

€2,140.10
Tax included
Reference televes-313902
Brand Televes
Quantity
Available in 24/48h

Free shipping
Lower section swingarm Galvanized hot 3m turret series 550 Red Televes

Lower section swingarm Galvanized hot 3m turret series 550 Red Televes

€2,140.10

This product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here

3m lower section pivoting for the erection of a 550-series tower.
The section is painted red (RAL 3020).
Guy wires are required for pivoting sections.

Highlights

  • Anchoring system with union nuts
  • 550 tower maximum height: 140m (as per calculation conditions)

Features

  • The hot galvanizing surface treatment provides enhanced durability in adverse corrosion conditions
  • Colour paint, oven-lacquering with polyester electrostatic powder

Specifications

Reference 313902
Description Tower 550 VER lower tilting
Material

(1) Steel: ST 37-2 Thickness: Ø 60 ext. x 4mm
Re: N / mm2 Rn min .: 360/510 N / mm2

(2) Steel: S 275 JR Thickness: Ø 14mm
Re: N / mm2 Rn min: 410/560 N / mm2
Finish

Hot lacquering with polyester spray
60-80 μm (Red RAL 3020)

GALVANIZED TO HOT
Weight  97 Kg
Surface facing the wind 0.704 m2 x 1.2 coef. = 0.845 m2
