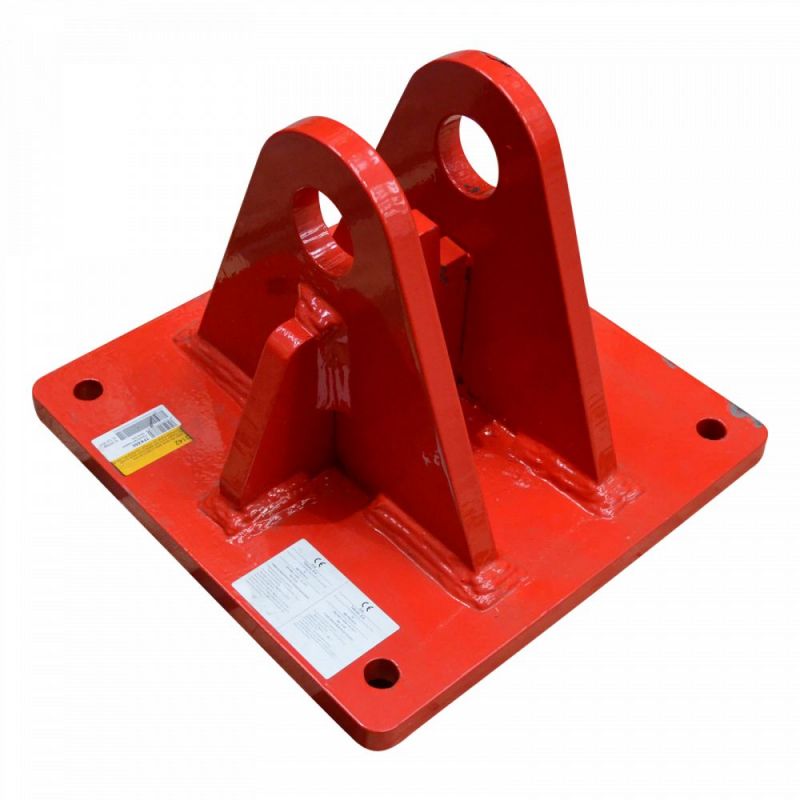

Built-in tilting base G.C red turret series 550 Televes

Pivoting embedded base with an articulated anchoring system for the 550 range guy-wired braced tower. Concrete might not be necessary if bolted to a surface plate (ref. 312901). Hot-dip galvanized + painted red (RAL 3020). Televes 314201

€1,906.84
Tax included
Reference televes-314201
Brand Televes
Quantity
Available in 24/48h

Free shipping
Built-in tilting base G.C red turret series 550 Televes

Built-in tilting base G.C red turret series 550 Televes

€1,906.84

Pivoting embedded base with an articulated anchoring system for the 550 range guy-wired braced tower.
Concrete might not be necessary if bolted to a surface plate (ref. 312901).

Hot-dip galvanized + painted red (RAL 3020)

Highlights

  • Anchoring system with union nuts
  • 550 tower maximum height: 140m (as per calculation conditions)

Features

  • Pivoting: guy-wire system installation

Specifications

Reference   314201
 Description Pivoting base, tower 550
 Material (1) Steel F6210, 25 mm thickness plate
Re min. 275 N/mm2
Rn min. 430/540 N/mm2
(2) Hardened and tempered steel.
 Finishing

Zinc Shining + Bicromatado + R.P.R.

GALVANIZED TO HOT
 Weight 72 Kg
