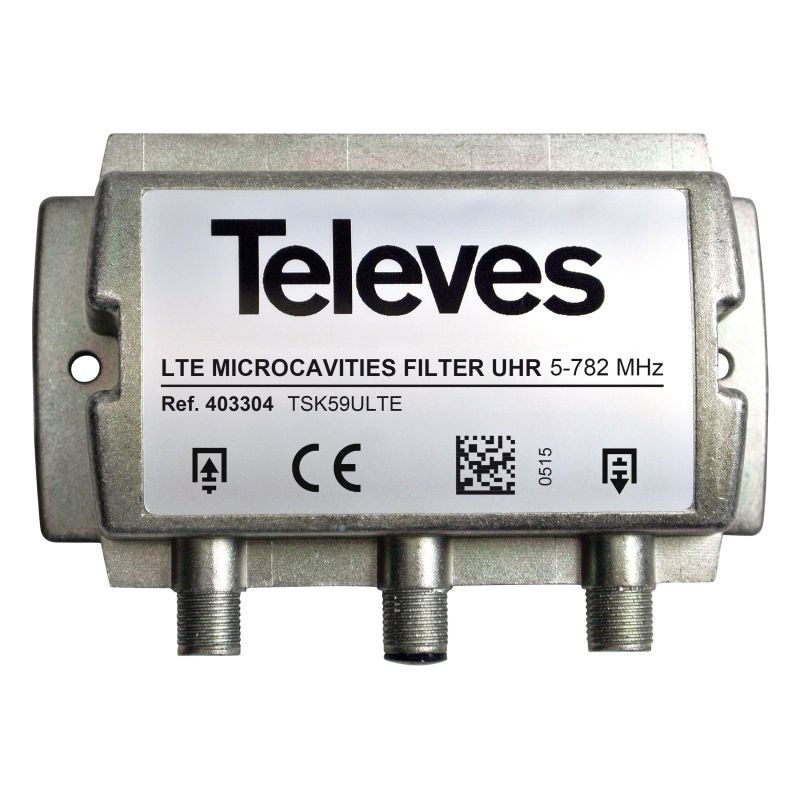

LTE filter/4G microcavities UHR 5-782MHz (C.59) Televes
LTE/4G filter with ultra high rejection from channel 59. Recommended for cases where the interfering signals and the DTT channels are contiguous and/or when the interfering signals are much more powerful than the TV signals. Televes 403304
€108.27
Tax included
Reference
televes-403304
Brand
Televes
LTE filter/4G microcavities UHR 5-782MHz (C.59) Televes
€108.27
LTE/4G filter with ultra high rejection from channel 59. Recommended for cases where the interfering signals and the DTT channels are contiguous and/or when the interfering signals are much more powerful than the TV signals.
Stands out for
- Stability of parameters against environmental changes of temperature and humidity
- Manufactured with very high quality components that rule out any variation of their frequency response
- Optimal filtering of adjacent interfering signals
Features
- Minimal step losses so as not to affect distributed signals
- Specially designed to protect broadband headers or other active devices
- Interior or exterior installation (with box 4163)
Specifications
| Frequency range | MHz | 5 - 782 | 791 - 862 |
| Interstage attenuator | dB | 1 | > 60 |
| Inputs / Outputs | nº | 1 / 1 | |
| Max current tickets | ---- | ||
| Operating temperature range | ºC | -5 ... +45 | |
| Protection index | IP | 20 | |
| Dimensions (Length x Height x Depth) | mm | 100 x 70 x 30 | |
| Weight | g | 200 | |
