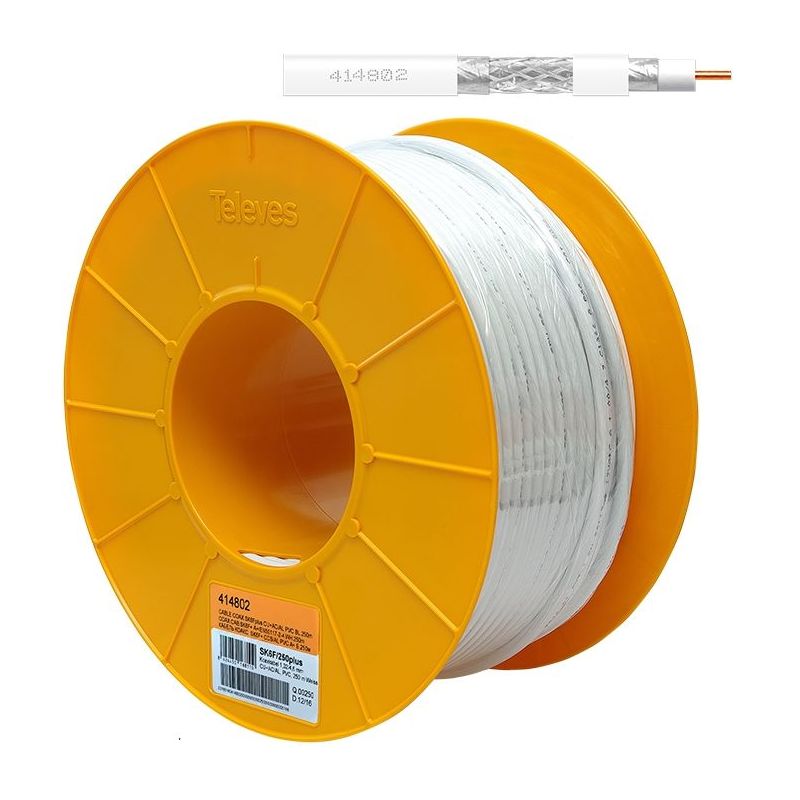

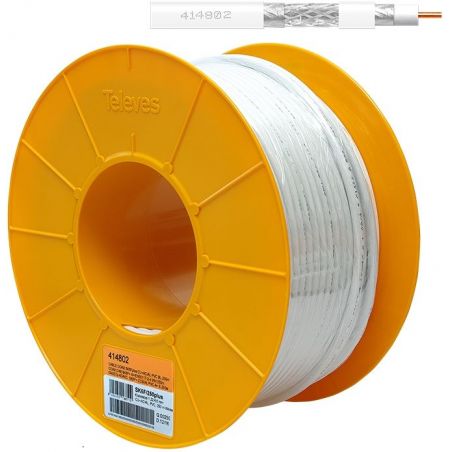

Plastic coil 250m coaxial cable SK6Fplus White Televes

Coaxial cable with live made of copper steel and aluminum mesh (CCS / Al) with good braiding coverage (60%). It is triple shielded (TSH) so it has a second extra sheet of extra armor. A cable 19VAtC.A, PVC cover. White. Plastic coil 250m. Televes 414802

€0.50
Tax included
Reference televes-414802
Brand Televes
Quantity
Available in 24/48h

Free shipping
Plastic coil 250m coaxial cable SK6Fplus WhiteTeleves

Plastic coil 250m coaxial cable SK6Fplus White Televes

€0.50
Coaxial cable with live made of copper steel and aluminum mesh (CCS / Al) with good braiding coverage (60%). It is triple shielded (TSH) so it has a second extra sheet of extra armor. A cable 19VAtC.A, PVC cover.

Highlights

  • Internal conductor made of copper-plated steel and aluminum mesh
  • Class A + shielding
  • Euroclass Eca

Features

  • Outer PVC cover in white
  • Characteristic impedance of 75 ohm
  • Available in reels of different footage

Discover

Coaxial trishield (TSH) Class A+ cable

With 3 layers of shielding (trishield), these cables are those that provide greater immunity to interference, as they have a very high screening. Its use is recommended in routes with high levels of electromagnetic noise.

Their constructive properties make them Class A +, complying with the EN 50117 standard:

  • At 5 - 30 MHz => TI <2.5 mΩ / m
  • At 5 - 1000 MHz => SA> 95 dB
  • At 1000 - 2000 MHz => SA> 85 dB
  • At 2000 - 3000 MHz => SA> 75 dB

Where, the transfer impedance (TI) defines the effectiveness of the shielding at low frequencies, and the shielding attenuation (SA) defines it between 30 and 3000MHz.

Specifications

Type SK6Fplus
Standard EN 50117-2-4
EuroClass Eca
Class A+
Inner conductor Ø mm 1.02
Material CCS
Res. Ohm/Km <110
Dielectric Ø mm 4.6
Material PEE
Overlapped foil Aluminium + Polyester
Braid Material Al
Dimensions (Ncx Nsx Ø) 16 x 6 x 0.12
Res. Ohm/Km <30
Coverage % 60
2-nd foil Yes
Petrol-Jelly No
Outer sheath Ø mm 6.8
Material PVC
Minimum bending radius mm 34
Screening attenuation @ 1GHz dB >95 (100 typ.)
Capacitance pF/m 53
Impedance Ohm 75
Transfer impedance (5-30MHz) mOhm/m ≤2.5
Velocity ratio % 82
Attenuations (dB/m)
Frequency (MHz)
5 0.02
47 0.04
90 0.06
200 0.10
500 0.15
800 0.19
1000 0.22
1350 0.25
1750 0.29
2050 0.31
2300 0.33
