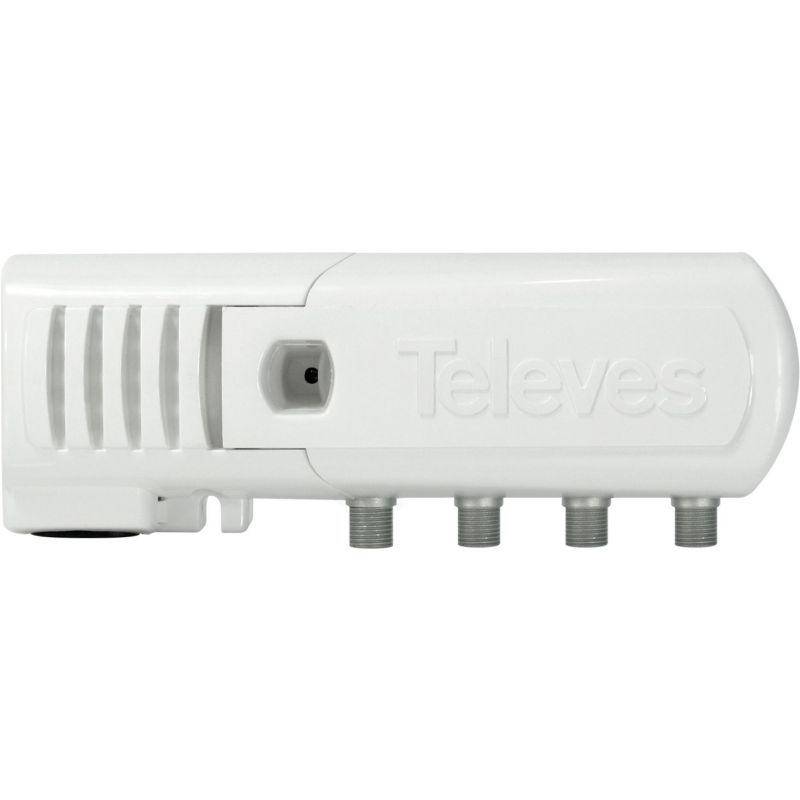

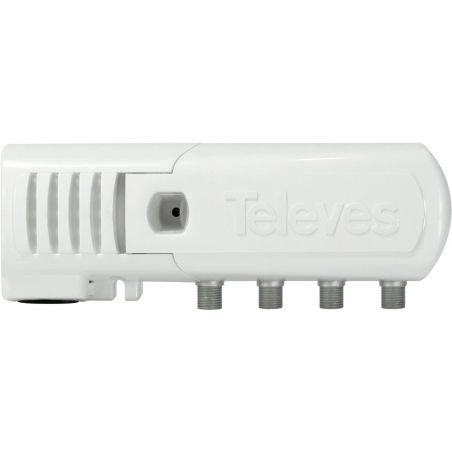

Home Amplifier 1e/(2s+TV) F 47-790MHz G 20dB Televes

Amplifier housing 3 outputs (2+TV), to expand the domestic terrestrial television network. The TV output offers a lower gain to be connected directly to the TV (without installing a socket). It incorporates LTE/4G filtering. Televes 552240

This product is replaced by the F domestic amplifier 1e/(2s+TV) F 47...694MHz G 20dB Vs 106dBμV Televes

€52.18

Tax included

Reference televes-552240

Brand Televes

Home Amplifier 1e/(2s+TV) F 47-790MHz G 20dB Televes

€52.18

Description
Product Details

Home amplifier "F". 3 outputs (2+TV): VHF/UHF - LTE Ready.

Amplifier housing 3 outputs (2+TV), to expand the domestic terrestrial television network.
The TV output offers a lower gain to be connected directly to the TV (without installing a socket).
It incorporates LTE/4G filtering.

Stands out for

Discreet and restrained design
High-performance integrated switching power supply: reduced consumption (40% less than a standard amplifier)
Fully automated manufacturing and subjected to rigorous quality controls

Features

Manual gain control, protected by a hinged lid
Screw on the wall
"F" connectors

Specifications

Inputs			3(2+1TV) (F)
Frequency range		MHz	47...790
Gain	G	dB	20 (12 @ TV)
Gain regulation margin	marg	dB	15
Output level	DIN 45004B Vout	dBμV	>106
Output level	IMD3 (2tones, -35dB) Vout	dBμV	113
Noise figure	N.F.	dB	6
Power / current max. inputs	ON	Vdc/ mA	-
Power / current max. inputs	OFF	Vdc/ mA	-
Voltage / network frequency		V~/Hz	196...253 / 50...60
Total AC consumption		W/mA	2
Protection index		IP	20
Operating temperature range		ºC	-5 ... +45
