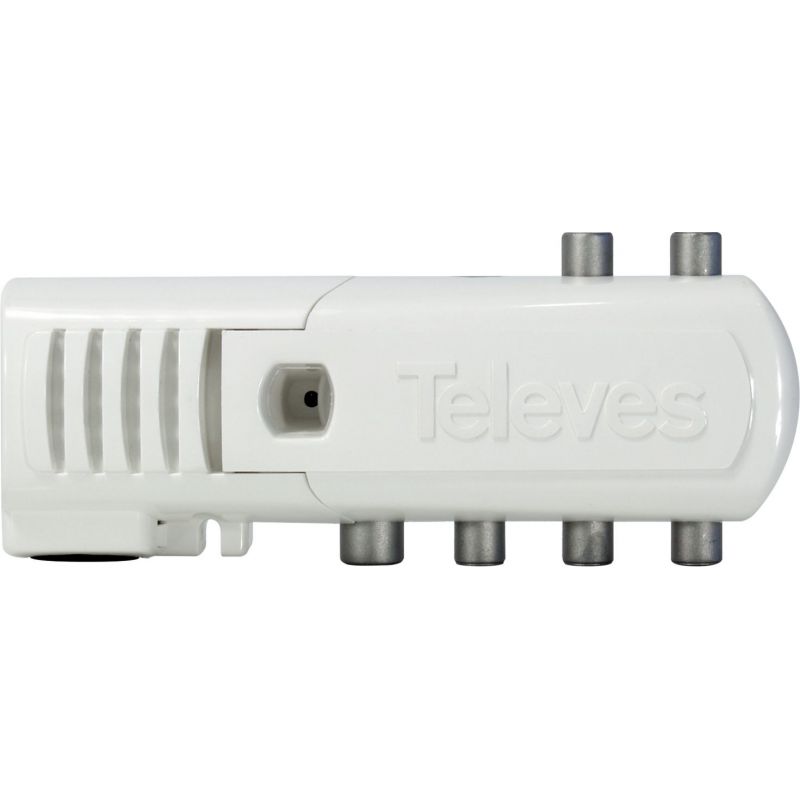

Home Amplifier 1e/(4s+TV) CEI 47-790MHz G 16dBTeleves
Amplifier housing 5 outputs (4+TV), to expand the domestic terrestrial television network. The TV output offers a lower gain to be connected directly to the TV (without installing a socket). It incorporates LTE/4G filtering. Televes 552940
€58.66
Tax included
Reference
televes-552940
Brand
Televes
Home Amplifier 1e/(4s+TV) CEI 47-790MHz G 16dBTeleves
€58.66
Housing amplifier "CEI/IEC". 5 outputs (4+TV): VHF/UHF - LTE Ready.
Amplifier housing 5 outputs (4+TV), to expand the domestic terrestrial television network.
The TV output offers a lower gain to be connected directly to the TV (without installing a socket).
It incorporates LTE/4G filtering.
Stands out for
- Discreet and restrained design
- High-performance integrated switching power supply: reduced consumption (40% less than a standard amplifier)
- Fully automated manufacturing and subjected to rigorous quality controls
Features
- Manual gain control, protected by a hinged lid
- Screw on the wall
- "CEI/IEC" connectors
Specifications
| Inputs |
5(4+1TV) (CEI/IEC) |
||
| Frequency range | MHz | 47...790 | |
| Gain | G | dB | 16 (11 @ TV) |
| Gain regulation margin | marg | 15 | |
| Output level | DIN 45004B Vout | dBμV | >102 |
| IMD3 (2tones, -35dB) Vout | 109 | ||
| Noise figure | N.F. | dB | 6 |
| Power / current max. inputs | ON | Vdc/ mA |
- |
| OFF | - | ||
| Voltage / network frequency | V~/Hz | 196...253 / 50...60 | |
| Total AC consumption | W/mA | 2.3 / 23 | |
| Protection index | IP | 20 | |
| Operating temperature range | ºC | -5 ... +45 |
