Field Meter H30 (DVB-C) + Remote CTR + IP Test + DOCSIS 3.0 Televes

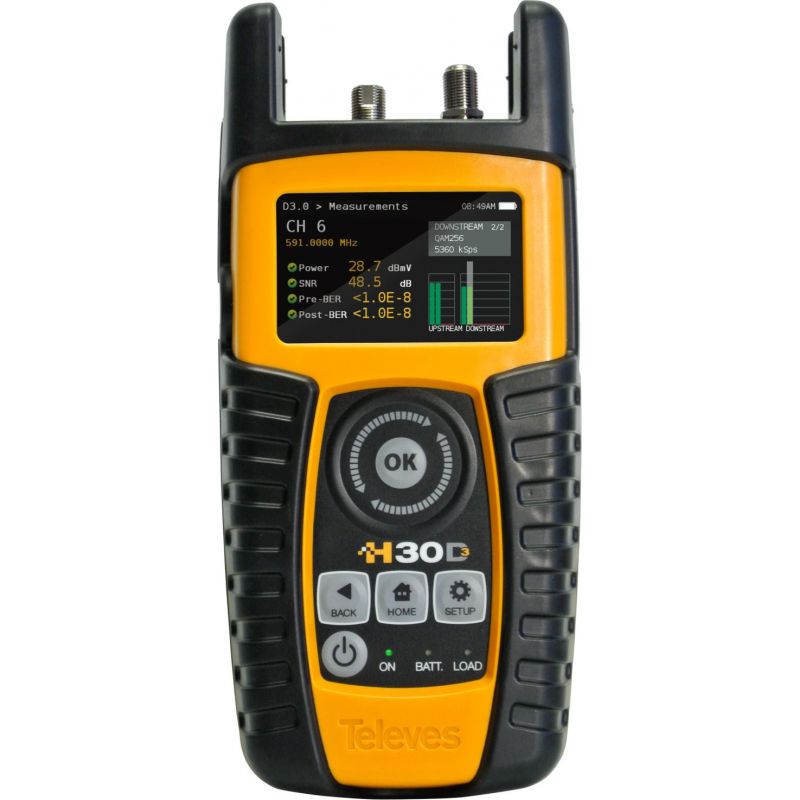

The H30D3 (DVB-C) sprectrum analyzer with DOCSIS 3.0 is a lightweight hand-held unit, packed with all the features needed to install and troubleshoot a television system using QAM digital modulation as well as NTSC analog signals. Control your meter and access your measurements from a smartphone, tablet, laptop or any other internet connected device. Televes 593104

€2,409.24
Tax included
Reference televes-593104
Brand Televes
Quantity
Out-of-Stock

Free shipping

The H30D3 (DVB-C) sprectrum analyzer with DOCSIS 3.0 is a lightweight hand-held unit, packed with all the features needed to install and troubleshoot a television system using QAM digital modulation as well as NTSC analog signals. Control your meter and access your measurements from a smartphone, tablet, laptop or any other internet connected device.

Big features, small package.

Features

  • Measurement and remote control via web interface
  • Simple and intuitive operation
  • Lightweight and robust
  • Indication of measurements by "step / failure" indicators (Quality Check Marks)
  • Automatic detection of parameters: the H30 automatically detects type (A / D) and parameters of the signal to be measured (constellation, symbol rate, etc.)

Specifications

Reference  593104
 Frequency  MHz  5 ... 1002
Resolution    50
Input impedance    75
input level   45 - 125
Type of Demodulation  ITU-T J.83 Annex A/B/C
Format Digital channel 16/32/64/128/256 QAM, QPSK
 Symbol Rate  Msps  2 to 6.9
 MER  dB dB up to 40
Digital Measures Power
MER
C / N
PreBER
PostBER
Constellation
Analog measurements Video Carrier Level
Audio Carrier Level
V/A ratio
C/N
General specifications
Screen type TFT Color
Screen dimensions  pixel  400 x 240 (2.8”)
Weight  g  510
Dimensions (W x H x D) mm  175 x 100 x 52
Output voltage adapter  Vdc  12
Battery Voltage Li Ion Vdc  7.2
Li Ion Battery Charge  mAh  2900
Battery life from full charge h >5
Operating temperature  ºC  -5 to 45
