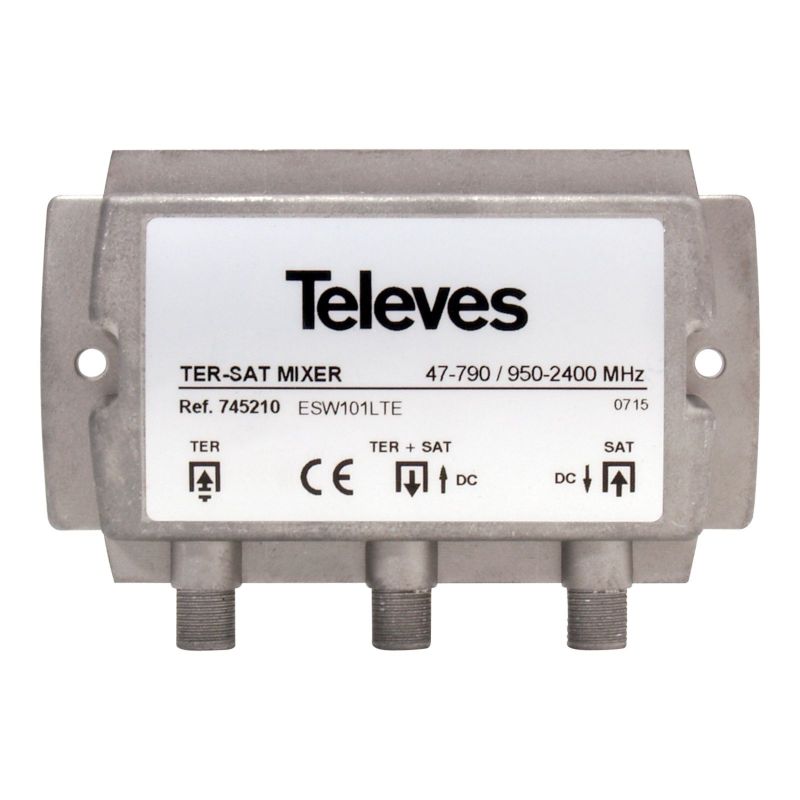

Mixer MATV-FI 2e / 1s F 47..790-950..2400MHz + DC Televes

2-input combiner that combines a terrestrial signal with a satellite signal into a single output. Can be used as GSM filter, thanks to the high TV-SAT rejection. High-screening Zamak chassis. Current pass from the output to the SAT input, for LNB supply. Indoor or outdoor installation (with ref. 4163 case). Televes 745210
€17.25
Tax included
Reference televes-745210
Brand Televes
Quantity
Available in 24/48h

Free shipping
Mixer MATV-FI 2e / 1s F 47..790-950..2400MHz + DC Televes

Mixer MATV-FI 2e / 1s F 47..790-950..2400MHz + DC Televes

€17.25

Terrestrial and satellite signal combiner. 2 inputs: MATV-SAT

2-input combiner that combines a terrestrial signal with a satellite signal into a single output.
Can be used as GSM filter, thanks to the high TV-SAT rejection

Highlights

  • High-screening Zamak chassis
  • Current pass from the output to the SAT input, for LNB supply

Features

  • Indoor or outdoor installation (with ref. 4163 case)
  • “F” connectors

Specifications

Frequency margin MHz 47 ... 790 950 ... 2400
Attenuation IN TER => OUT
IN TER => OUT A
IN TER => OUT B		 dB 1.5 >30
IN SAT => OUT
IN SAT A => OUT SAT B
IN SAT B => OUT SAT B		 dB >30 1.8
In-Out return losses dB >10 >10
Max current through inputs V/A - 50/0.5
Protection Level IP 23
Temperature operat. limits ºC -5 ... +45
