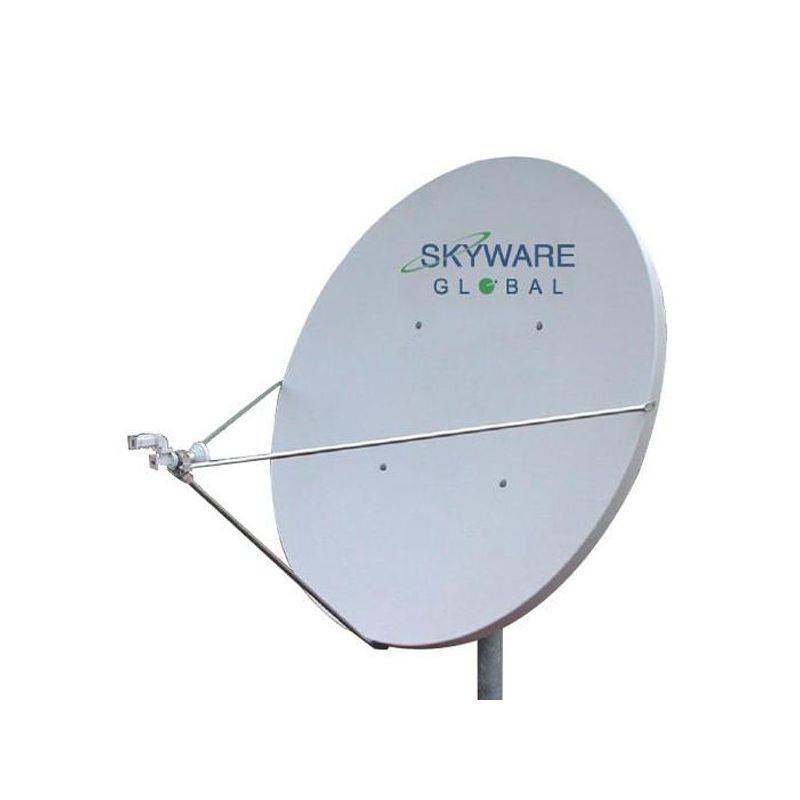

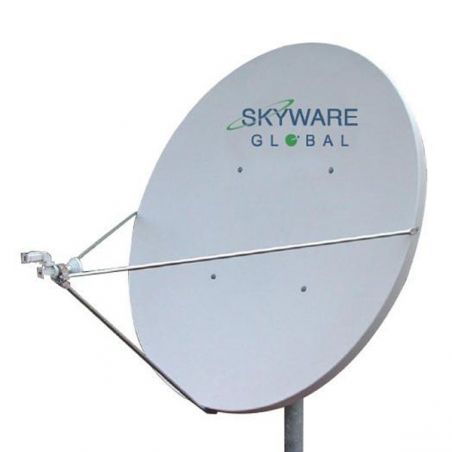

Satellite dish Offset Skyware Channel Master RX 100cm Ku band

Antenna Channel Master of 1 m. Professional fiberglass offset aOne-piece thermoset-molded offset reflector. Operating Frequency: 10.95 - 12.75 GHz. Factory pre-assembled Az/El mount. Single bolt fine elevation adjustmentnd fixed mount.

€308.55 €561.00 Save 45%
Tax included
Reference CMSKY-100
Brand Skyware Channel Master ASC
Quantity
Available Now

Free shipping

Satellite dish Offset Skyware Channel Master RX 100cm Ku band

€308.55 €561.00 Save 45%

This product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here

The Skyware Global 1.0 m Type 100 Offset Antenna is a rugged commercial grade product suitable for the most demanding applications. The reflector is thermoset-molded for strength and surface accuracy. Molded into the rear of the reflector is a network of support ribs which not only strengthens the antenna, but also helps to sustain its critical parabolic shape.

The Az/El mount is constructed from heavy-gauge steel to provide a rigid support to the reflector. The Az/El mount secures the antenna to either a 60 mm (2.38”) or 73-76 mm (2.88”-3.00”) O.D. mast and prevents slippage in high winds.

A specially formulated powder paint process offers excellent protection from weather-related corrosion.

Features

  • All materials comply with EU directive No. 2002/95/EC (RoHS).
  • One-piece thermoset-molded offset reflector.
  • Single bolt fine elevation adjustment.
  • Galvanized 19 mm (.75”) O.D. feed support legs.
  • Factory pre-assembled Az/El mount.
  • Plated hardware for maximum corrosion resistance.
  • Available with a wide variety of Ku-band feeds.
  • Does not include LNB or Waveguide.

Specifications

Type    Offset
Diameter    100 cm
Frequency

Band C

Ku Band

 -

10.95 - 12.75 Ghz
Gain at 3.95 GH     -
Gain at 11.95 GH    25ºK
Tª Noise (30º Elevation)

Band C

Ku Band

 -

1.95º
Cross polarization discrimination    30 dB
Beam Width at -2dB

Band C

Ku Band

 -

1.95º
VSWR

Band C

Ku Band

 -

1.3:1
Angle of Elevation 10º -70º (Continuo)
Azimut 0º -360º (Continuo)
Reflective material Fiberglass
Acceptable Mast Diameter 60 mm

Wind Resistance (Operational)

 80 Km/h
Wind resistance (External) 200 Km/h
Work rate -50ºC a +80ºC
Operational Humidity 0 a 100%
Interface WR75 Flat Flange

Downloads

Data sheet
